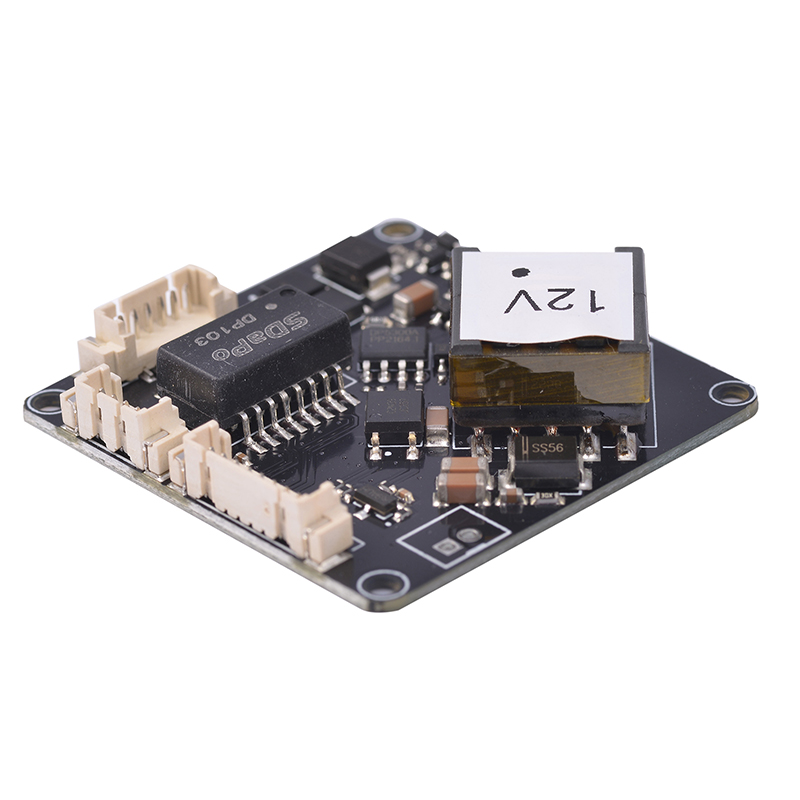

2019 Dapo New Product DP1435 12V 1.1A 13W Isolation Type Integrated Module PoE Module

l IEEE802.3af compliant.
l Low cost.
l Support PoE applications in both of Fast / Gigabit Ethernet environments.
l Support wide input voltage range 37Vdc to 57Vdc.
l Thermal cut off.
l Short circuit protection.
l Over current protection
l High DC/DC converting efficiency.
l Less external component one output decoupling capacitor.
l Isolation level 1.5KVrms.
l Enhanced surge protection
l Internal build in 2 channel bridge rectifiers

  DP1435

2019 Dapo New Product DP1435 12V 1.1A 13W Isolation Type Integrated  Module PoE Module



Product Description



Input Voltage

37~57V

Output Voltage

12V Typ.

Output Current (Vin=56V)

1.3A Max.

Line Regulation

5%

Load Regulation

5%

Ripple & Noise

200mVp-p max.

Efficiency

85% max.

Switching Frequency

180 KHz

Input to Output Isolation

1.5  KV

Type of DC/DC Converter

Flyback Type

Operating Temperature

-25 ~ +85 ℃



13W  PD(Powered Device)  Integrated  Module  (Isolation  Type)



l IEEE802.3af compliant.

l Low cost.

l Support PoE applications in both of Fast / Gigabit Ethernet environments.

l Support wide input voltage range  37Vdc to 57Vdc.

l Thermal cut off.

l Short circuit protection.

l Over current protection

l High DC/DC converting efficiency.

l Less external component one output decoupling capacitor.

l Isolation level 1.5KVrms.

l Enhanced surge protection

l Internal build in 2 channel bridge rectifiers

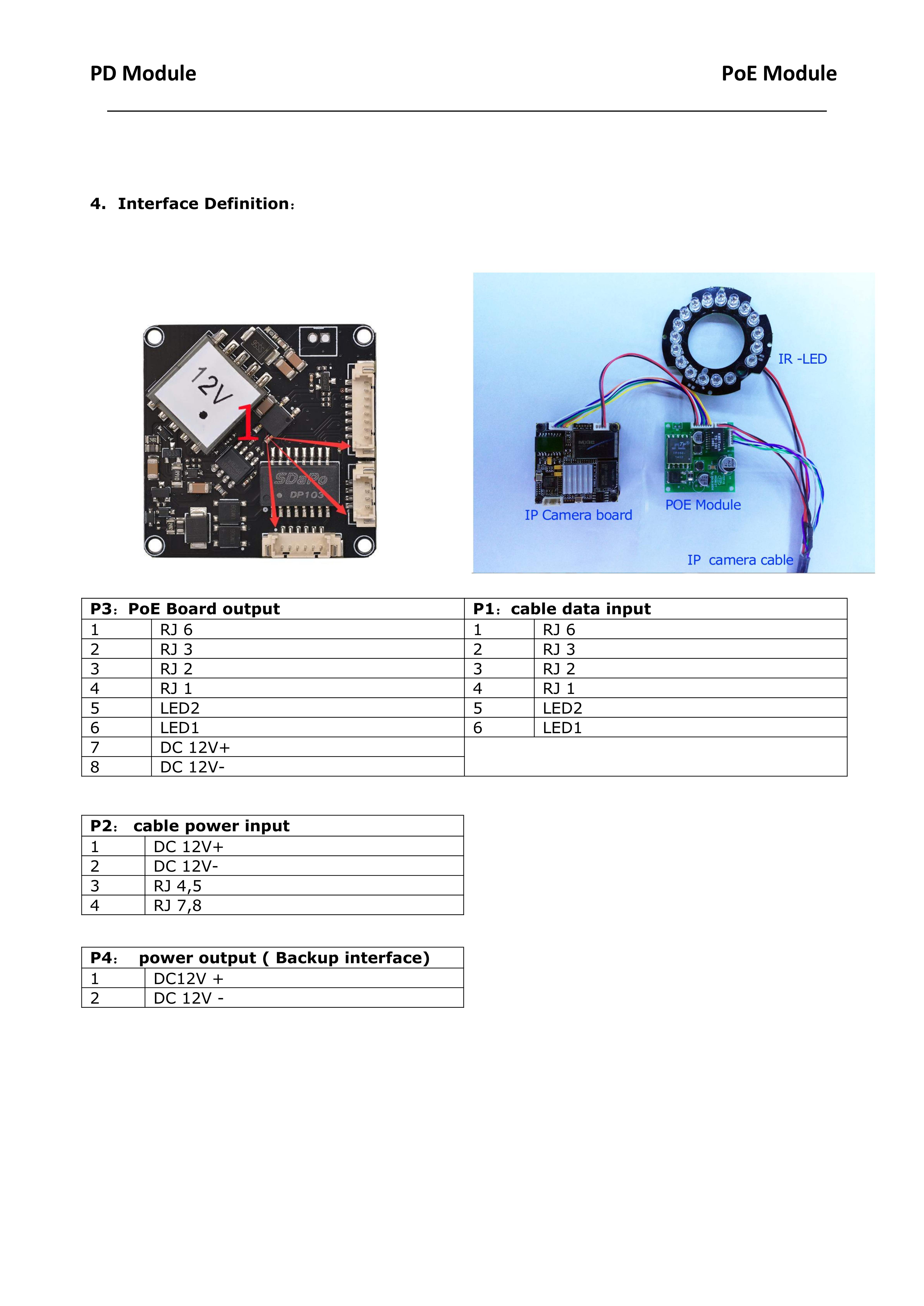

PIN  ASSIGNMENT



Pin #



Name



Description



1

VA1



RX Input (1). This input pin is used in conjunction with VA2 and connects to the centre tap of the transformer connected to pins 1 & 2 of the RJ45 connector (RX) - it is not polarity sensitive.

2

VA2



TX Input (2). This input pin is used in conjunction with VA1 and connects to the centre tap of the transformer connected to pins 3 & 6 of the RJ45 connector (TX) - it is not polarity sensitive.

3

VB1



Direct Input (1). This input pin is used in conjunction with VB2 and connects to pin 4 & 5 of the RJ45 connector - it is not polarity sensitive.

4

VB2



Direct Input (2). This input pin is used in conjunction with VB1 and connects to pin 7 & 8 of the RJ45 connector - it is not polarity sensitive.

5

GND



DC Return. This pin is the return path for the +VDC output.



6

VOUT

DC Output. This pin provides the regulated output from the DC/DC converter.
