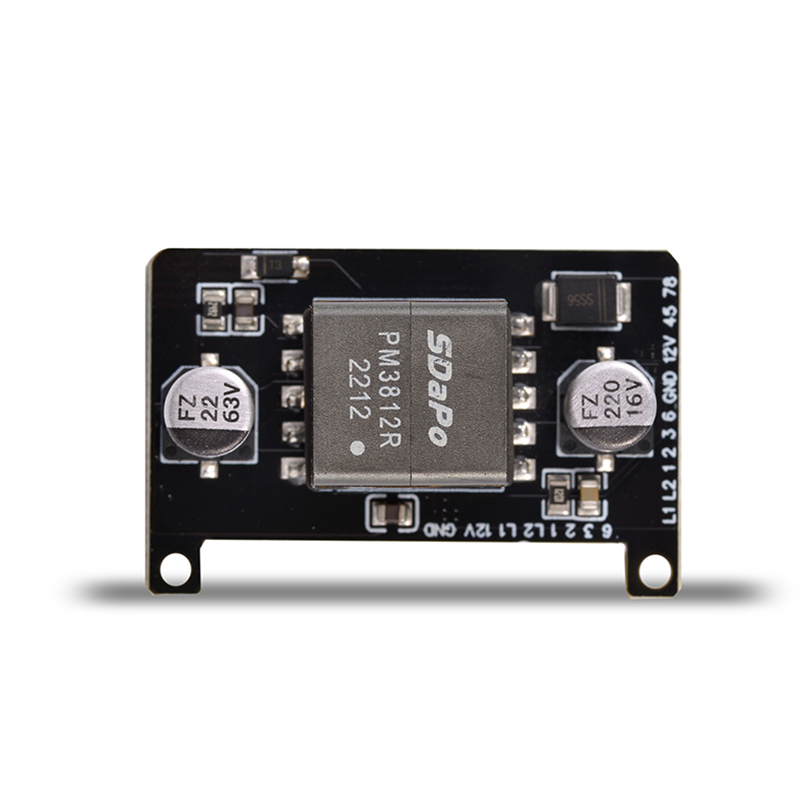

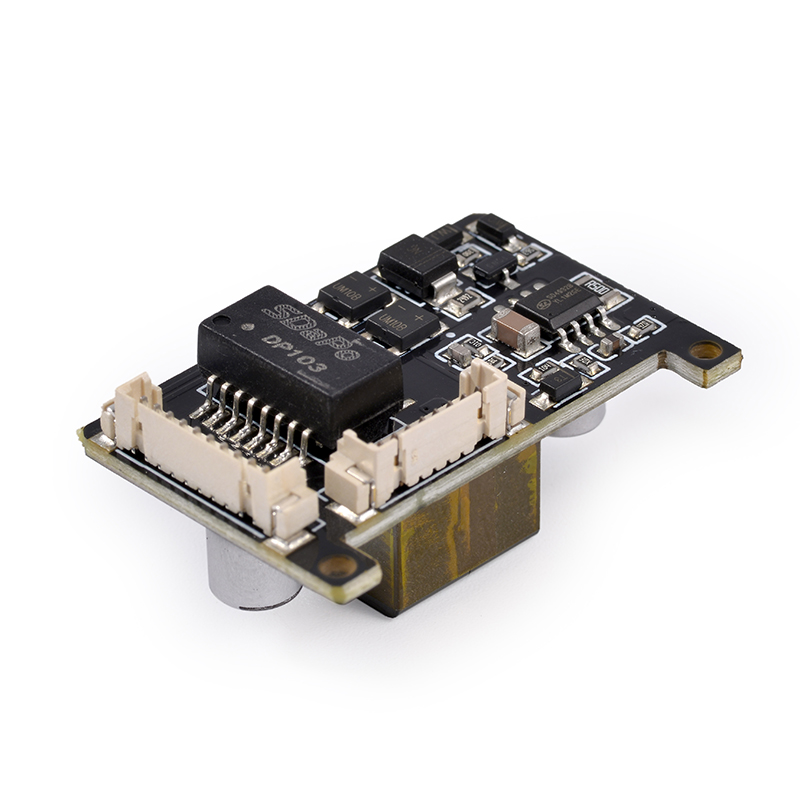

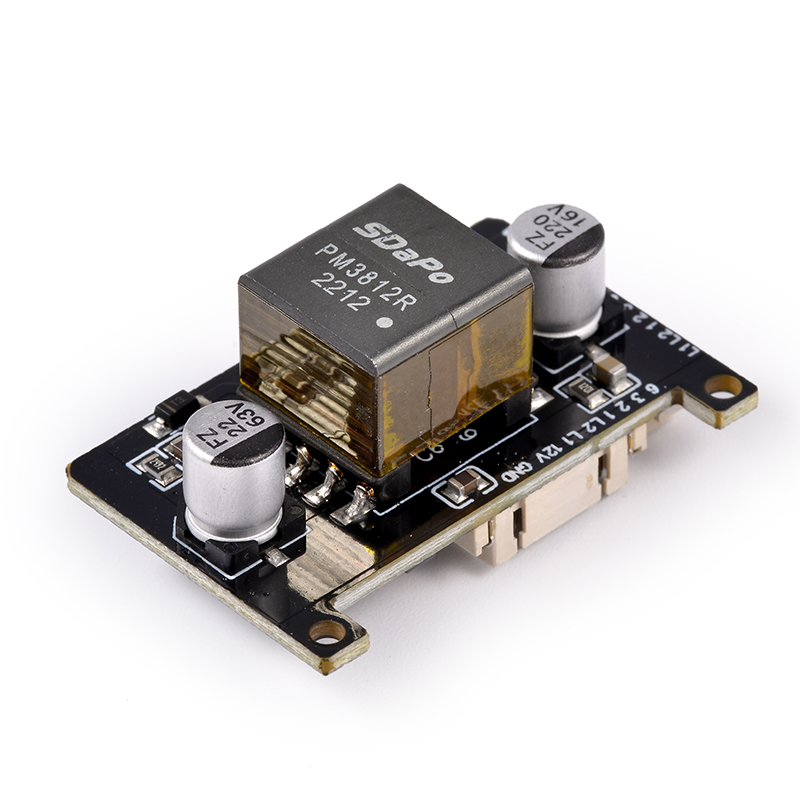

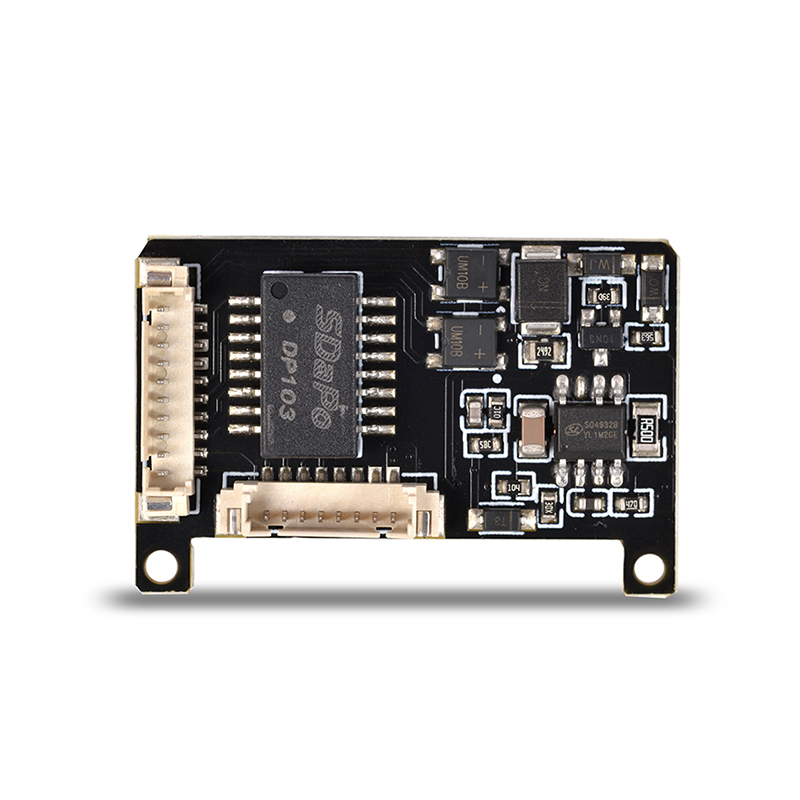

2019 New IEEE802.3af 5V 2.4A Pin to Pin AG9700 Board POE Module DP9700 PCB Board Power Supply

l IEEE802.3af compliant.
l Low cost.
l Support PoE applications in both of Fast / Gigabit Ethernet environments.
l Support wide input voltage range 37Vdc to 57Vdc.
l Thermal cut off.
l Short circuit protection.
l Over current protection
l High DC/DC converting efficiency.
l Less external component one output decoupling capacitor.
l Isolation level 1.5KVrms.
l Enhanced surge protection
l Internal build in 2 channel bridge rectifiers

  DP9705

DESCRIPTION



13W  PD(Powered Device)  Integrated  Module  (Isolation  Type)



FEATURES



l IEEE802.3af compliant.

l Low cost.

l Support PoE applications in both of Fast / Gigabit Ethernet environments.

l Support wide input voltage range  37Vdc to 57Vdc.

l Thermal cut off.

l Short circuit protection.

l Over current protection

l High DC/DC converting efficiency.

l Less external component one output decoupling capacitor.

l Isolation level 1.5KVrms.

l Enhanced surge protection

l Internal build in 2 channel bridge rectifiers



Product List



Part Number

Nominal Output Voltage

/ Current

Maximum Output Power

Nominal Input Voltage

Marking

DP9705

5.1Vdc / 2.55A

13W @ 25°C

48Vdc

DP9705

DP9712

12Vdc / 1.1A

13W @ 25°C

48Vdc

DP9712

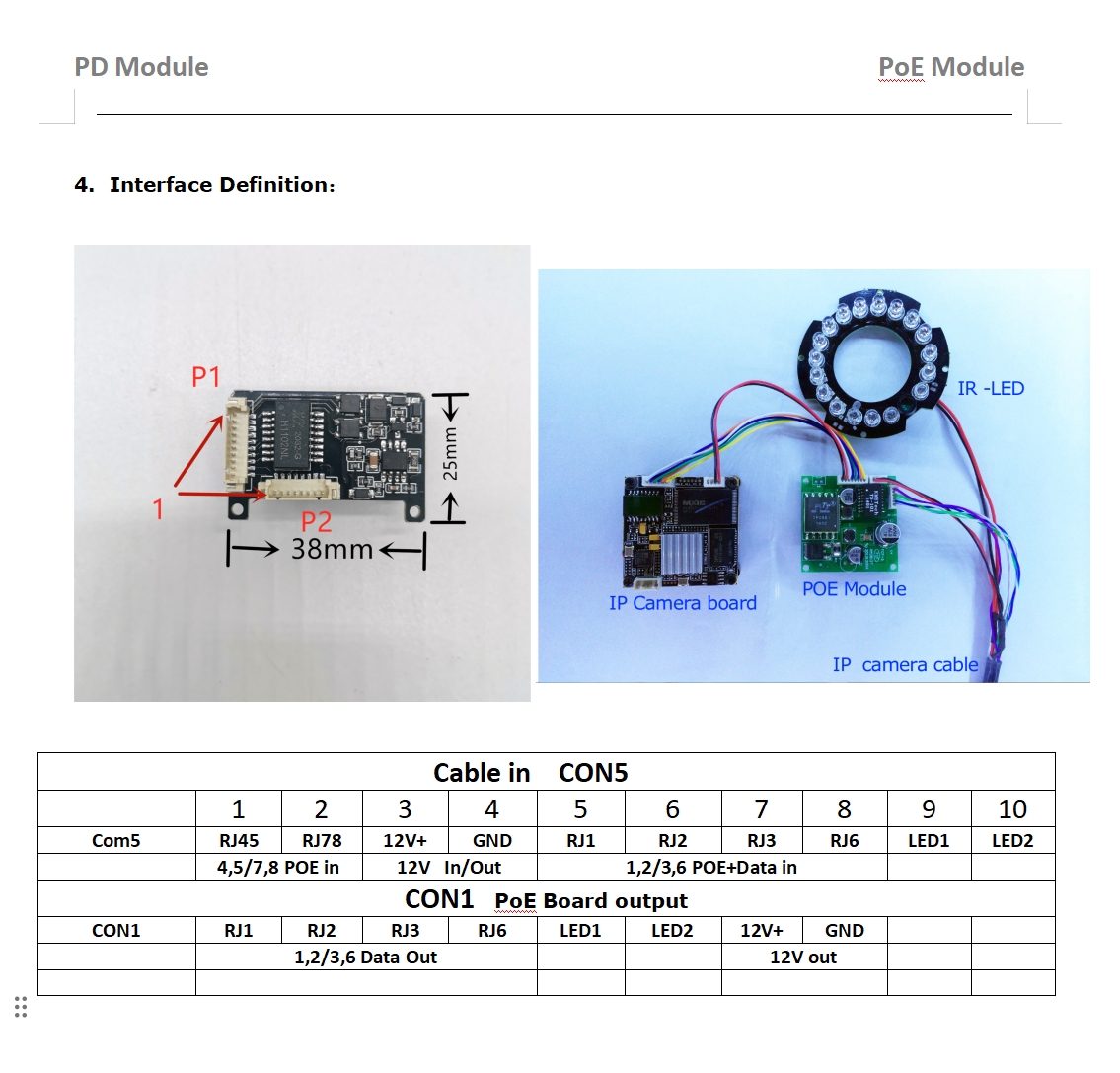

PIN  ASSIGNMENT

2019 New IEEE802.3af 5V 2.4A Pin to Pin Board POE Module DP9700 PCB Board Power Supply

Package



2019 New IEEE802.3af 5V 2.4A Pin to Pin Board POE Module DP9700 PCB Board Power Supply



Typical Application



2019 New IEEE802.3af 5V 2.4A Pin to Pin Board POE Module DP9700 PCB Board Power Supply

2019 New IEEE802.3af 5V 2.4A Pin to Pin Board POE Module DP9700 PCB Board Power Supply

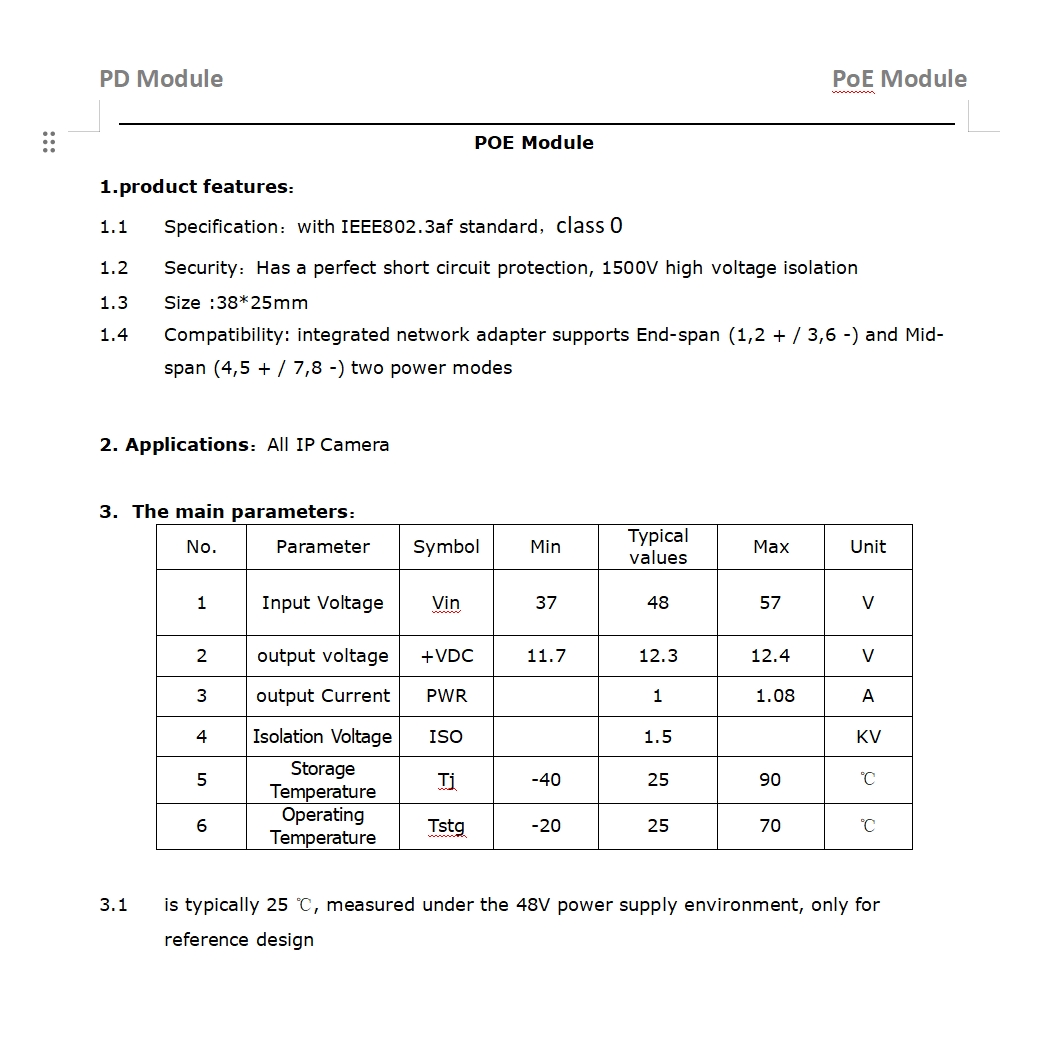

ELECTRICAL SPECIFICATIONS



No

Item

Specification

Comment

1

Input Voltage

44~57V


2
