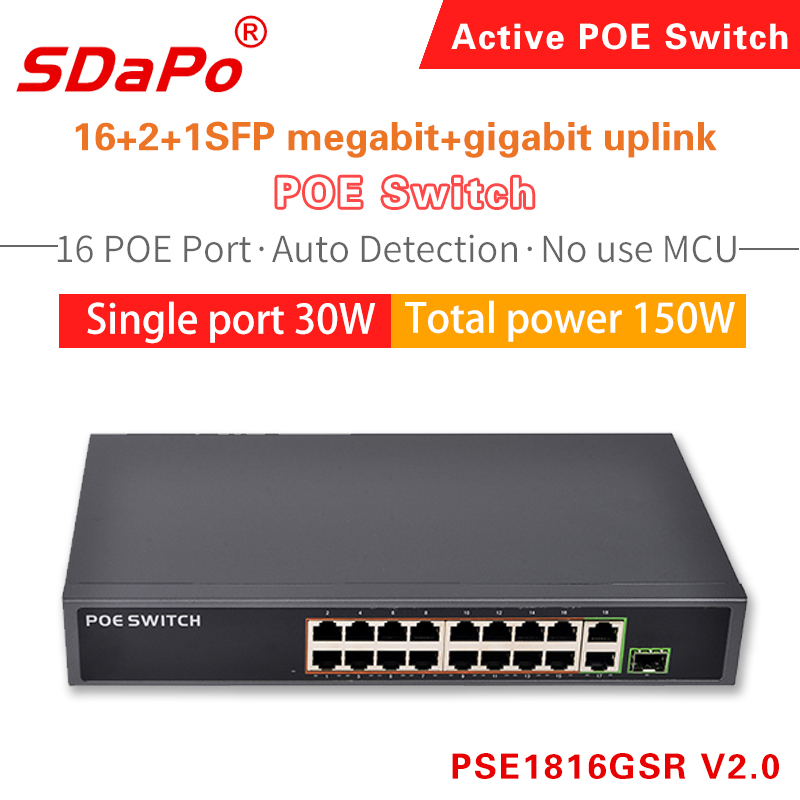

Shenzhen Sdapo Factory Direct PSE1816GSR V2.0 150W 16 Port PoE Switch +2TP+1 SFP Gigabit Uplink Not Combo PoE Network Switch

1) Up to 30W of Power on
2) Extender 250M 1-16 port
3) IEEE 802.3af/at
4) Compatible With All IEEE 802.3af/at or Legacy
5) Safe: Low Power Devices Receive Only the Power They Need
6) Safe and Reliable Power to WLAN Access Points
7) Automatic Detection and Protection of Non–standard Ethernet Terminals
8) Supports 10/100 Base-T applications
9) Compact Design Fits Easily in WLAN Access
10) Plug-and-Play no configuration required
11) Internal power supply
12) Easy installation and maintenance
13) Save up to 83% power with Green Technology
14) Complies to IEEE 802.3af PoE standard and is backward

Shenzhen Sdapo Factory Direct PSE1816GSR V2.0 150W 16 Port PoE Switch +2TP+1 SFP Gigabit Uplink Not Combo PoE Network Switch



Production Description



The PSE1816GSR offers 16 10/100Mbps Fast Ethernet ports and 2 Gigabit TP+1 SFP not combo ports. can be either 1000Base-T for 10/100/1000Mbps or 1000Base-SX/LX through SFP (Small Factor Pluggable) interface. PSE1816GSR boasts a high performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 8.8Gbps. Its two built-in GE uplink ports also offer incredible extensibility, flexibility and connectivity to the Core switch or Servers.



1) Up to 30W of Power on

2) Extender 250M 1-16 port

3) IEEE 802.3af/at

4) Compatible With All IEEE 802.3af/at or Legacy

5) Safe: Low Power Devices Receive Only the Power They Need

6) Safe and Reliable Power to WLAN Access Points

7) Automatic Detection and Protection of Non–standard Ethernet Terminals

8) Supports 10/100 Base-T applications

9) Compact Design Fits Easily in WLAN Access

10) Plug-and-Play no configuration required

11) Internal power supply

12) Easy installation and maintenance

13) Save up to 83% power with Green Technology

14) Complies to IEEE 802.3af   PoE standard and is backward







Hardware Specification



10/100Mbps Copper Ports



16 10/ 100Base-TX RJ-45 Auto-MDI/MDI-X ports



1000Mbps Copper Ports



2 10/100/1000Mbps RJ-45 Auto-MDI/MDI-X ports



SFP/mini-GBIC Slots



2 1000Base-SX/LX, shared with Port-17~Port-18



Switch Architecture



Store-and-Forward



Switch Fabric



12.8Gbps / non-blocking



Switch Throughput



5.36Mpps @64Bytes





Address Table



8K entries



Share Data Buffer



512Kbytes



Maximum Frame Size



9K Bytes





Flow Control



Back pressure for Half-Duplex

IEEE 802.3x Pause Frame for Full-Duplex





LED



Power (yellow )

10/100 LINK / ACT (Green)

1000  ACT(Green);1000 LINK(yellow)







Reset Button



< 5 sec: System reboot

> 5 sec: Factory Default



Dimension (W x D x H)



293 x 165 x 44 mm, 1U height



Weight



2kg



Power Requirement



100~160V AC, 50-60 Hz



Power Consumption / Dissipation





150 Watts maximum /510 BTU/hr maximum
