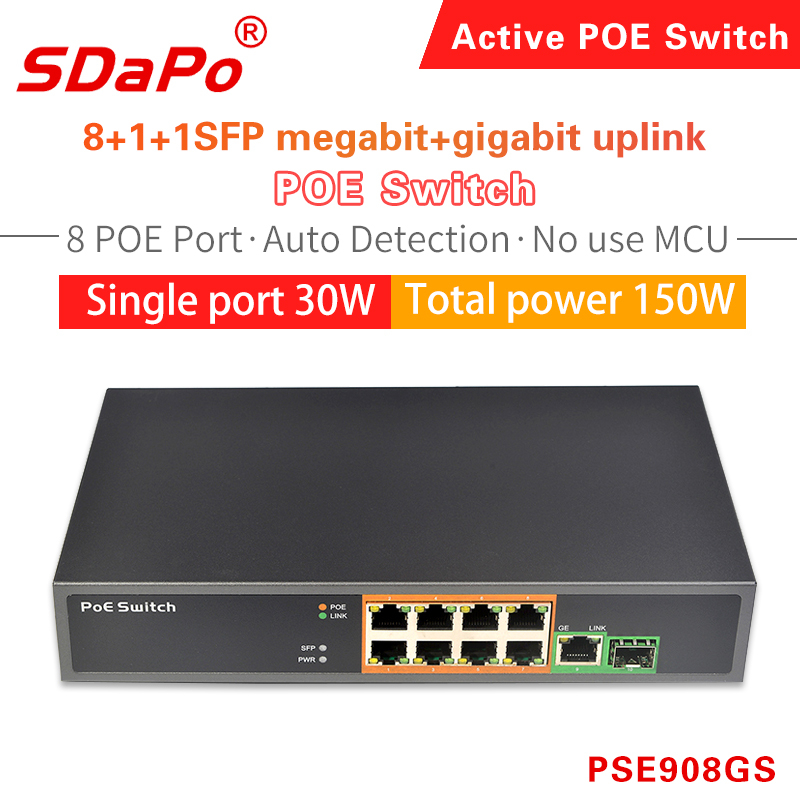

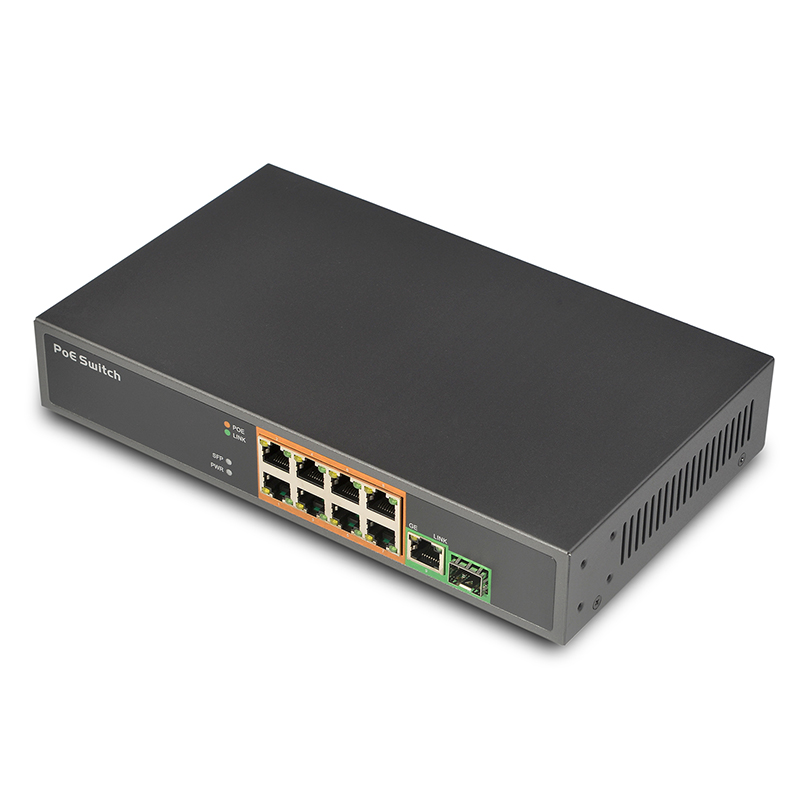

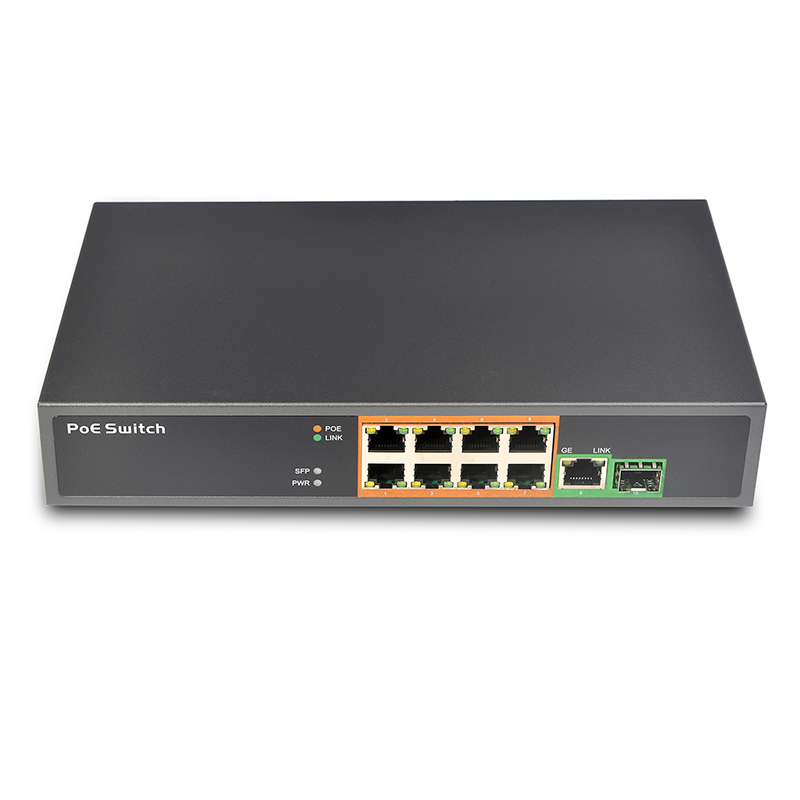

SDAPO PSE1008GSR gigabit poe switch total power 150W 8 port PoE Switch and 2 Gigabit TP/SFP not Combo uplink port

Up to 30W of Power on
IEEE 802.3af/at
Compatible With All IEEE 802.3af/at or Legacy
Safe: Low Power Devices Receive Only the Power TheyNeed
Safe and Reliable Power to WLAN Access Points
Automatic Detection and Protection of Non–standardEthernet Terminals
Supports 10/100 Base-T applications
Compact Design Fits Easily in WLAN Access
Plug-and-Play no configuration required
Internal power supply
Easy installation and maintenance
Save up to 83% power with Green Technology
complies to IEEE 802.3af PoE standard and is backward

SDAPO PSE1008GSR gigabit poe switch total power 150W 8 port PoE Switch and 2 Gigabit TP/SFP not Combo uplink port

Product Description

It will extra charge $ 0.75 for hanging ear if needed



Product Overview



Modern business networks are used for increasingly diverse applications – traditional data streams, VoIP voice traffic, video output from digital security cameras and remote control devices to name a few. The range of devices attached to today’s converged network often need to be supported not just in terms of data – equipment such as VoIP IP telephones and Wireless Access Points frequently need to be powered in physical locations where mains power is not available or difficult to deliver. Providing power to such devices via an Ethernet UTP cable is an elegant and easy to implement solution.

compatible to IEEE802.3af/at. It can power both existing

10/100Base-T network devices Wi-MAX and wireless

IEEE 802.11n access points.



Ordering Information



Part Number Description

PSE1008GSR: 8-Port 10/100/1000Mbps /8Port PoE +2 Gigabit Uplink + 2 SFP
TP/SFP not Combo Ports Switch (150W)



High Performance Wire-Speed Switching



The PSE1008GSR offers 8 10/100Mbps Fast Ethernet ports and 2 Gigabit TP/SFP ports. The two Gigabit TP ports can be either 1000Base-T for 10/100/1000Mbps o interface. PSE1008GSR boasts a high performance switch architecture that is capable of providing non-blocking switch
fabric and wire-speed throughput as high as
5.6Gbps. Its two built-in GbE uplink ports also
offer incredible extensibility, flexibility and connectivity to the Core switch or Servers.



Features



 Up to 30W of Power on

 IEEE 802.3af/at

 Compatible With All IEEE 802.3af/at or Legacy

 Safe: Low Power Devices Receive Only the Power TheyNeed

 Safe and Reliable Power to WLAN Access Points

 Automatic Detection and Protection of Non–standardEthernet Terminals

 Supports 10/100 Base-T applications

 Compact Design Fits Easily in WLAN Access

 Plug-and-Play no configuration required

 Internal power supply

 Easy installation and maintenance

 Save up to 83% power with Green Technology

 complies to IEEE 802.3af   PoE standard and is backward



Hardware Specification



10/100Mbps Copper Ports

8* 10/ 100/1000Mbps Base-TX RJ-45 Auto-MDI/MDI-X ports

1000Mbps Copper Ports

2* 10/100/1000Mbps RJ-45 Auto-MDI/MDI-X ports

SFP/mini-GBIC Slots

2* 1000Base-SX/LX, shared with Port-9~Port-10

Switch Architecture

Store-and-Forward

Switch Fabric

20 Gbps / non-blocking

Switch Throughput

4.17Mpps @64Bytes

Address Table

8K entries

Share Data Buffer

512Kbytes

Maximum Frame Size

9K Bytes

Flow Control

Back pressure for Half-Duplex

IEEE 802.3x Pause Frame for Full-Duplex

LED

Power (yellow );POE(yellow)

10/100 LINK / ACT (Green)

1000  ACT(Green);1000 LINK(yellow)



Reset Button

 < 5 sec: System reboot

> 5 sec: Factory Default



Dimension (W x D x H)

 250 x 150 x 44 mm, 1U height


Weight

 1.6 kg

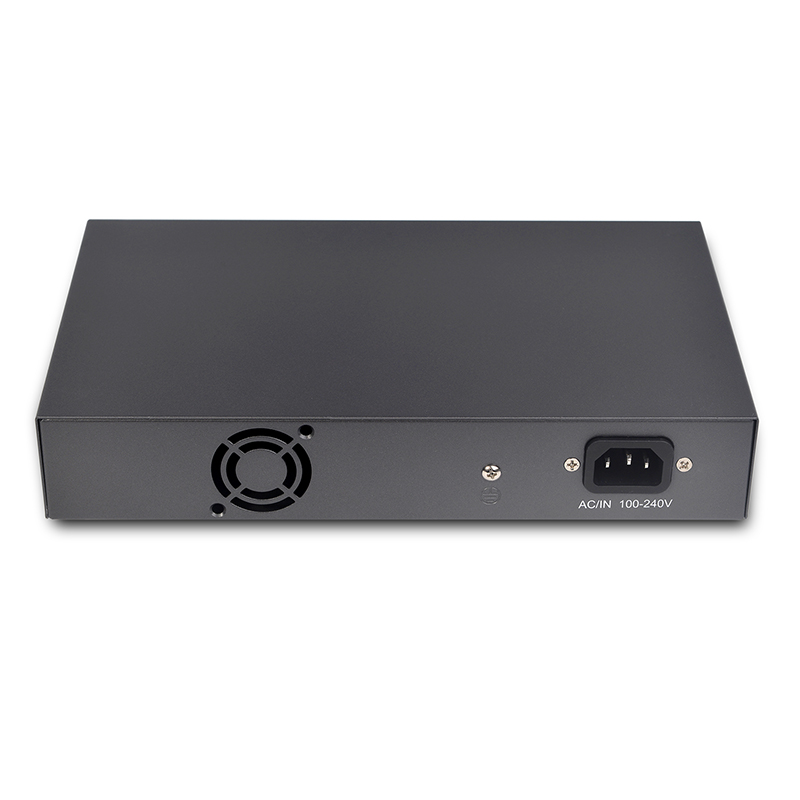

Power Requirement

 100~240V AC, 50-60 Hz


Power Consumption / Dissipation

 150 Watts maximum /510  BTU/hr maximum



Power over Ethernet



PoE Standard

IEEE 802.3af/at Power over Ethernet / PSE

PoE Power Supply Type

End-Span

PoE Power Output

Per Port 52V DC, 350mA~600ma . Max. 30 Watts

Power Pin Assignment

1/2(+), 3/6(-)

PoE Power Budget

130 Watts

Max. number of Class 3 PD

8



Standards Conformance



Standards Compliance

IEEE802.3:10Base-T IEEE802.3u: 100BaseTX

IEEE802.3z:1000Base-SX/LX IEEE802.3ab:1000Base-T IEEE802.3af/at:

Power over Ethernet


Environemmental



Operating

Temperature:  0 ~ 50 Degree C Relative Humidity:  20 ~ 95%

Storage

Temperature:  -10 ~ 70 Degree C

Relative Humidity:  20 ~ 95% (non-condensing)
