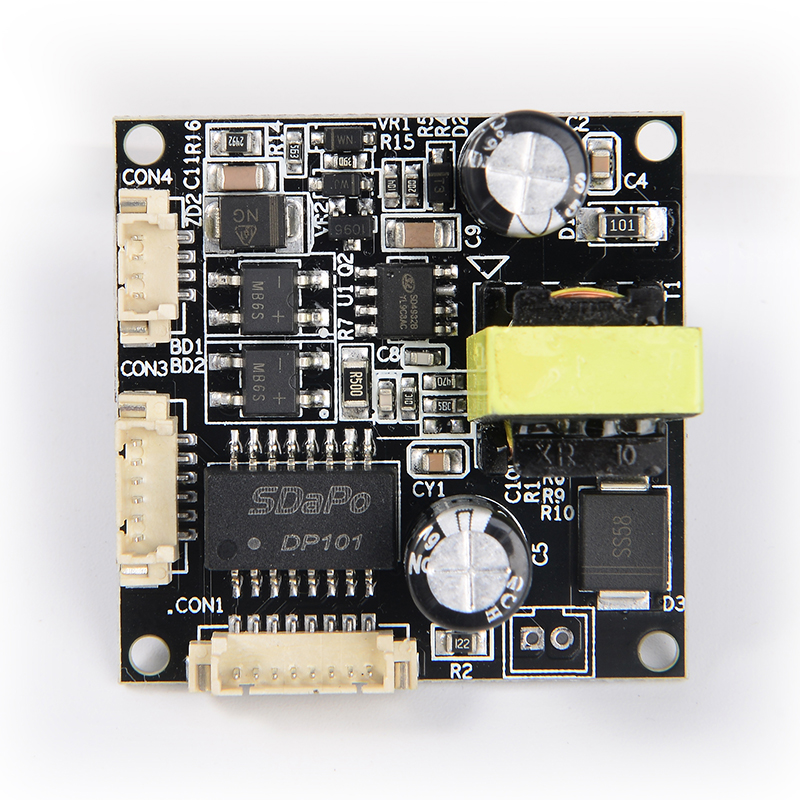

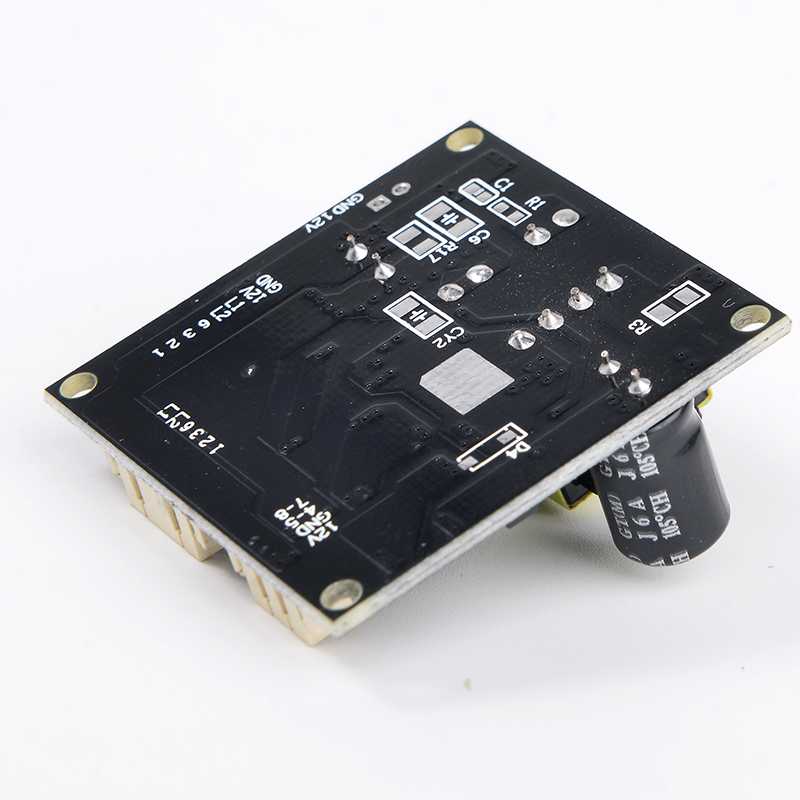

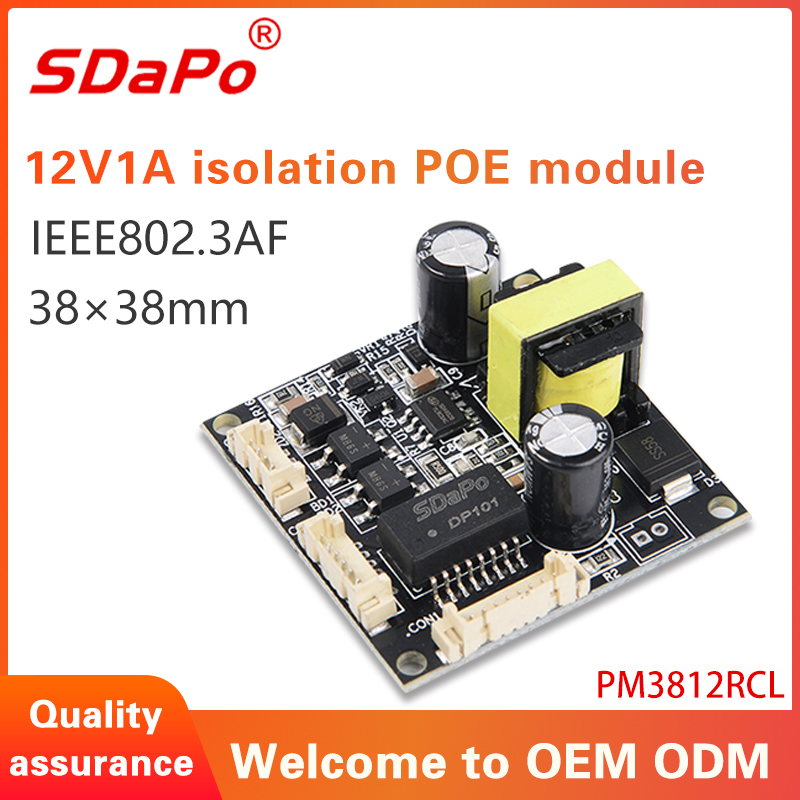

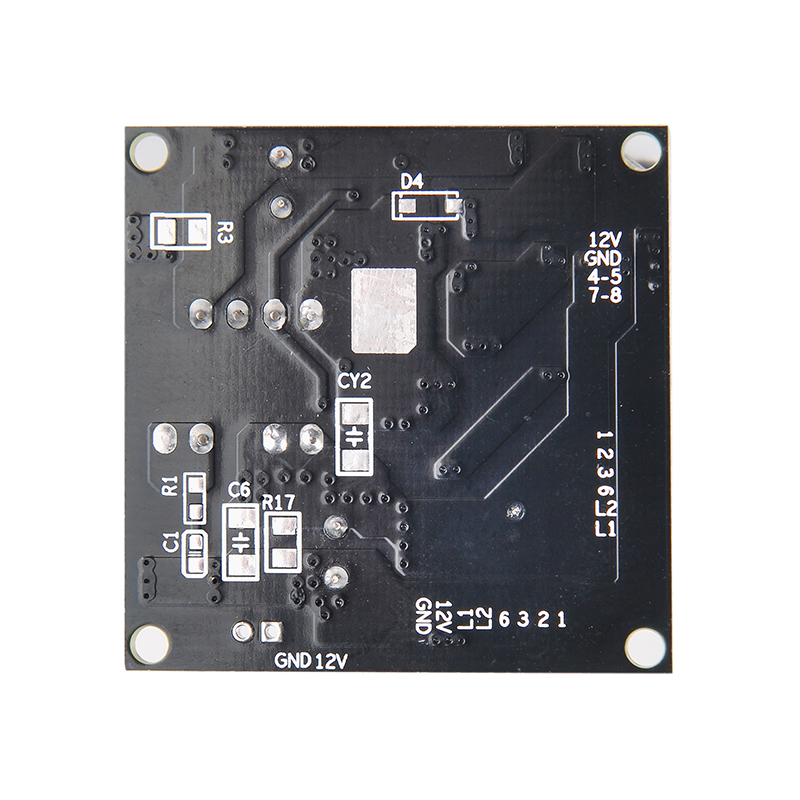

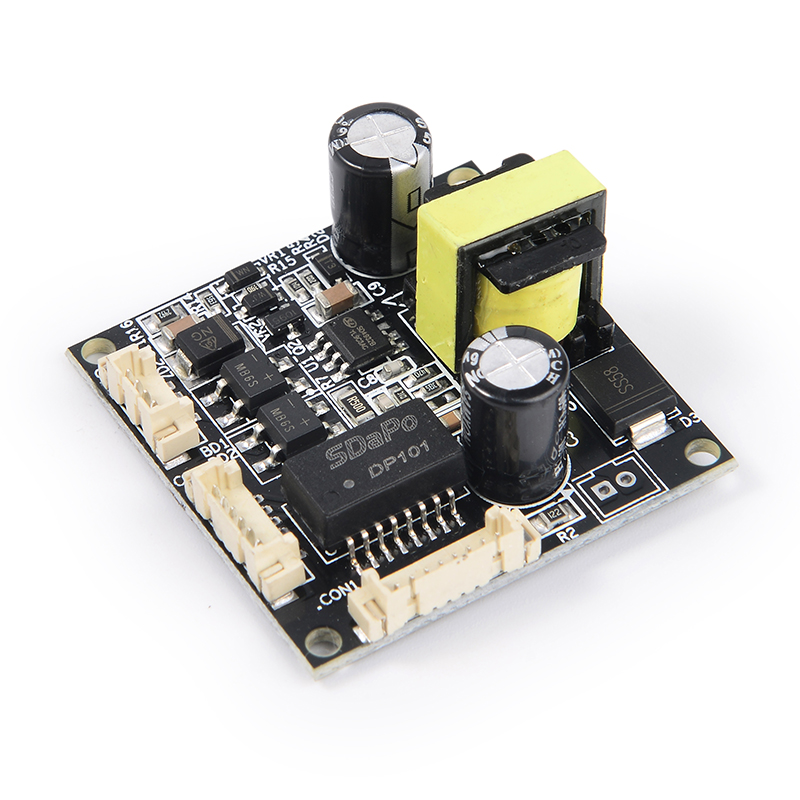

SDAPO PM3812RCL total power 13W 12V/1A IEEE802.3af standard ModeA or ModeB ISO 1500V poe ip camera module poe module

product features
Specification:with IEEE802.3af standard
Security:Has a perfect short circuit protection, 1500V high voltage isolation
Size :38*38mm
Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power modes

SDAPO PM3812RCL  total power 13W ModeA or ModeB poe ip camera module

Product Description

 1.product features



Specification:with IEEE802.3af standard

Security:Has a perfect short circuit protection, 1500V high voltage isolation

Size :38*38mm

Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power modes



2. Applications:All IP Camera

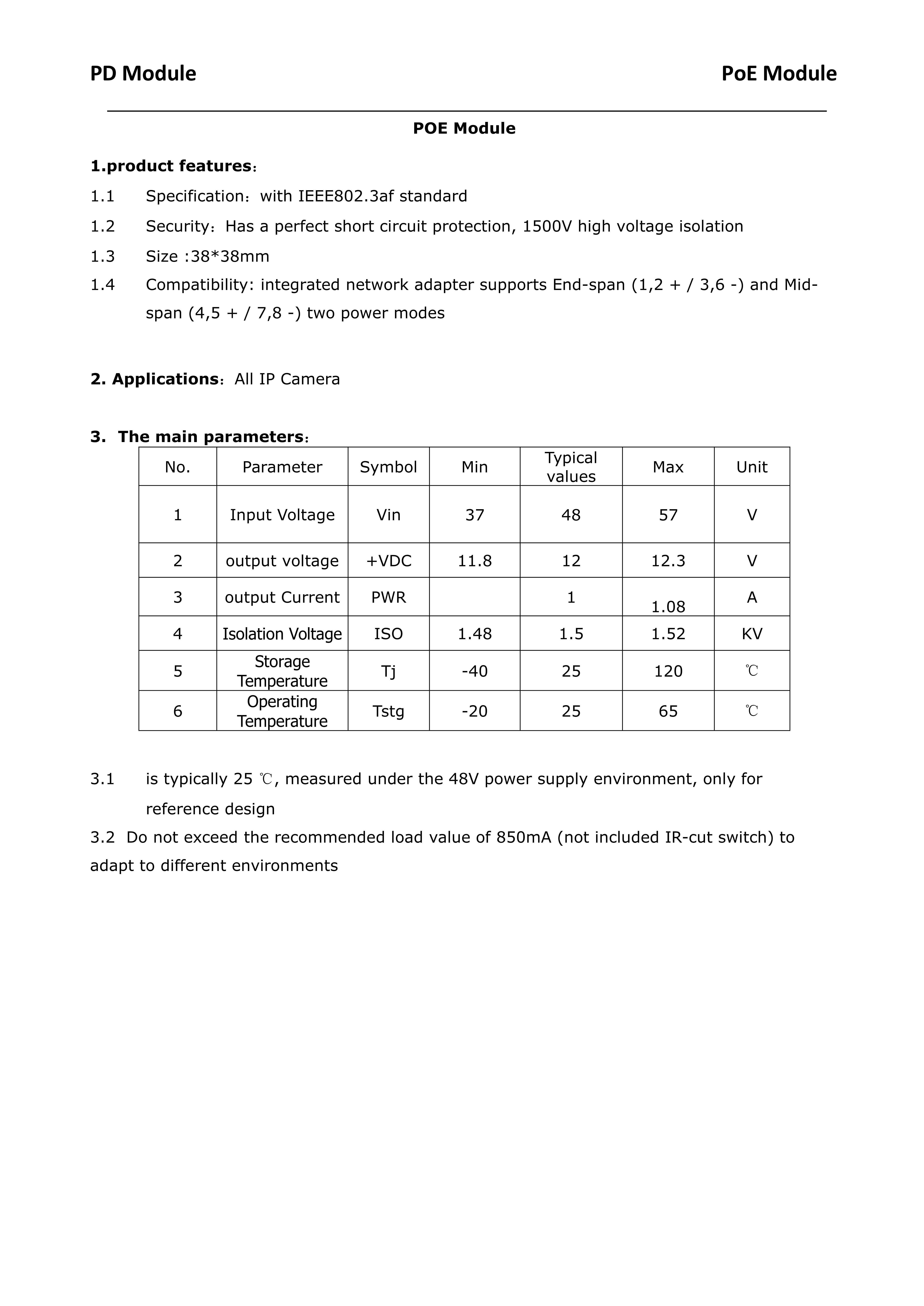

3.The main parameters



No.

Parameter

Symbol

Min

Typical values

Max

Unit

1

Input Voltage

Vin

37

48

57

V

2

output voltage

+VDC

11.8

1212.3

V

3

output Current

PWR


1

1.08

A

4

Isolation Voltage

ISO

1.48

1.51.52

KV

5

Storage Temperature

Tj

-40

2.5

120

6

Operating Temperature

Tstg

-20

2.565

3.1 is typically 25 ℃, measured under the 48V power supply environment, only for reference design

3.2  Do not exceed the recommended load value of 850mA (not included IR-cut switch) to adapt to different environments



You are welcome to customize the POE modules of various sizes and appearances and function.
The layout is required to receive the initial research and development expenses.
After ordering a certain number of modules (usually 5000 pieces), the r&d cost can be deducted.
After the sample is qualified, batch production.

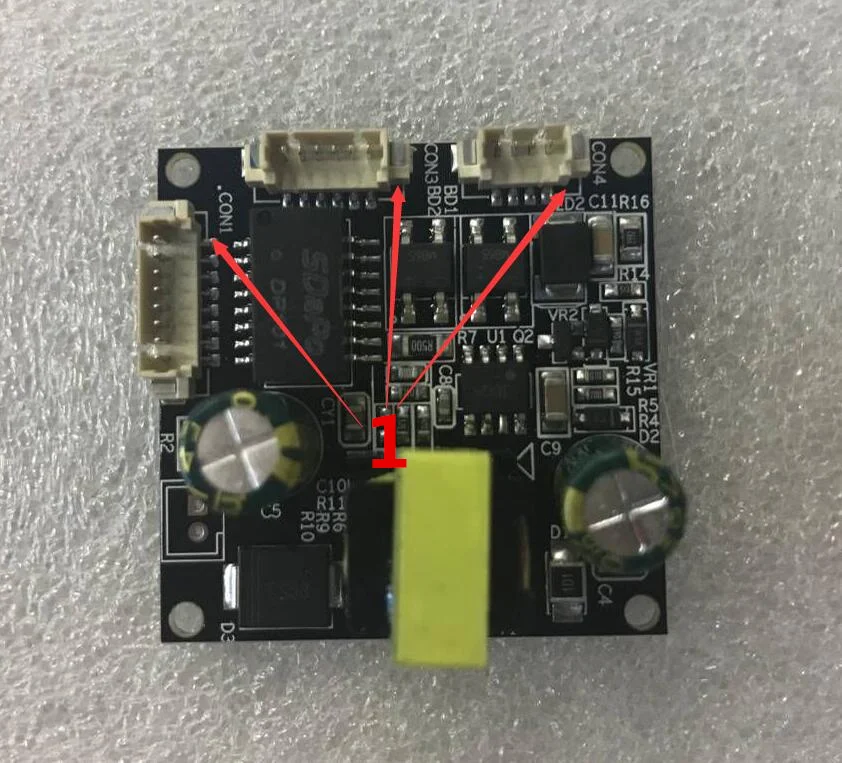

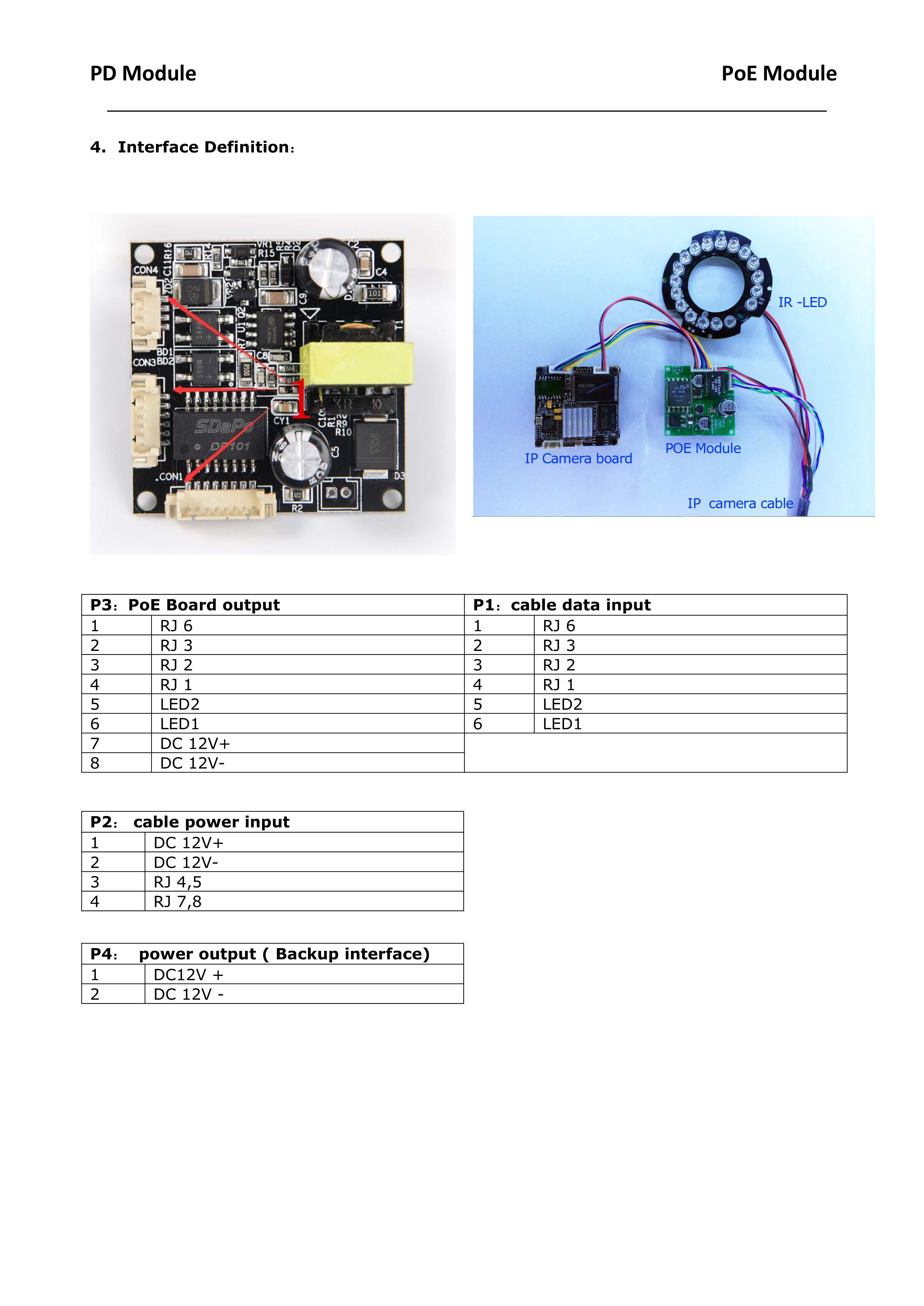

4.Interface Definition

NO

P1:cable data input

 P2: cable power input

P3:PoE Board output

 P4:  power output ( Backup interface)
 1 RJ 6 DC 12V+ RJ 6 DC12V +
 2 RJ 3 DC 12V+ RJ 3 DC 12V -
 3 RJ 2 RJ 4,5 RJ 2
 4 RJ 1 RJ 7,8 RJ 1
 5 LED2
 LED2
 6 LED1
 LED1
 7

 DC 12V+
 8

 DC 12V-
