SDAPO FS5712DW waterproof ISO 1500V ieee802.3af standard iso 1.5kv Poe wire poe cable SDAPO FS5712DW waterproof ISO 1500V ieee802.3af standard iso 1.5kv Poe wire poe cable SDAPO FS5712DW waterproof ISO 1500V ieee802.3af standard iso 1.5kv Poe wire poe cable

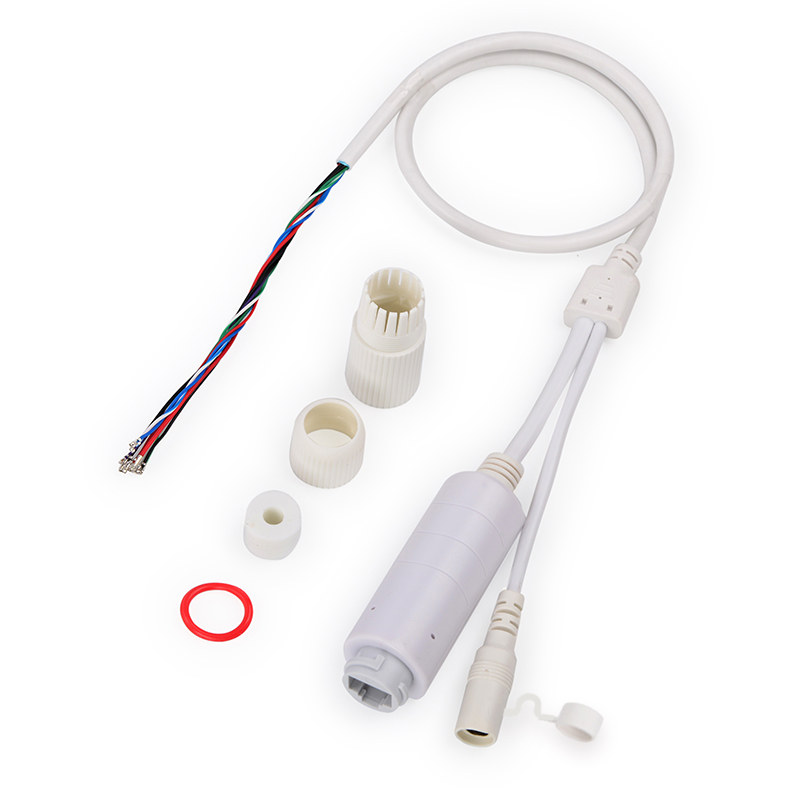

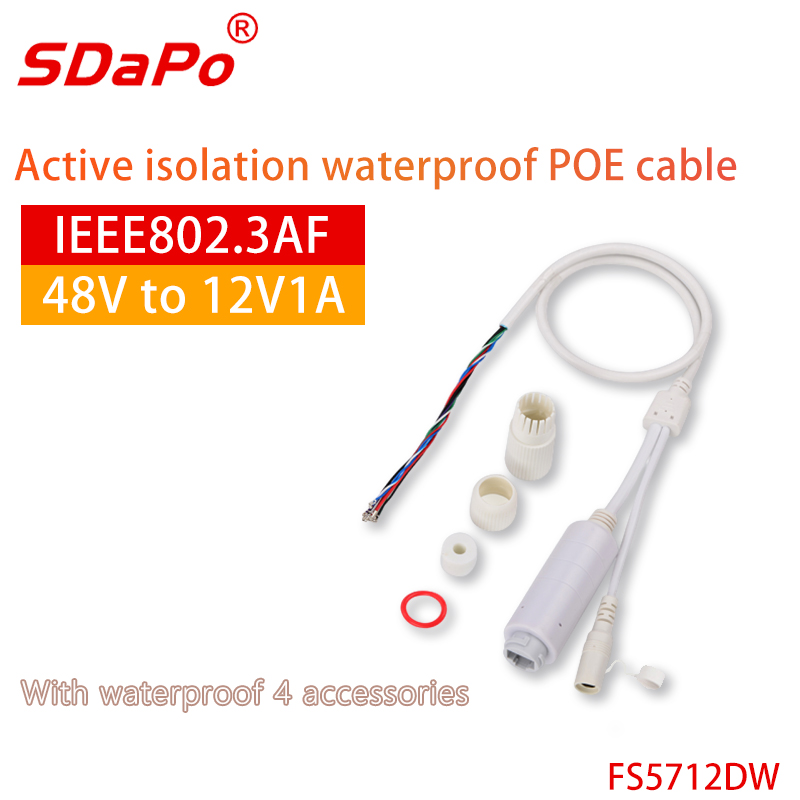

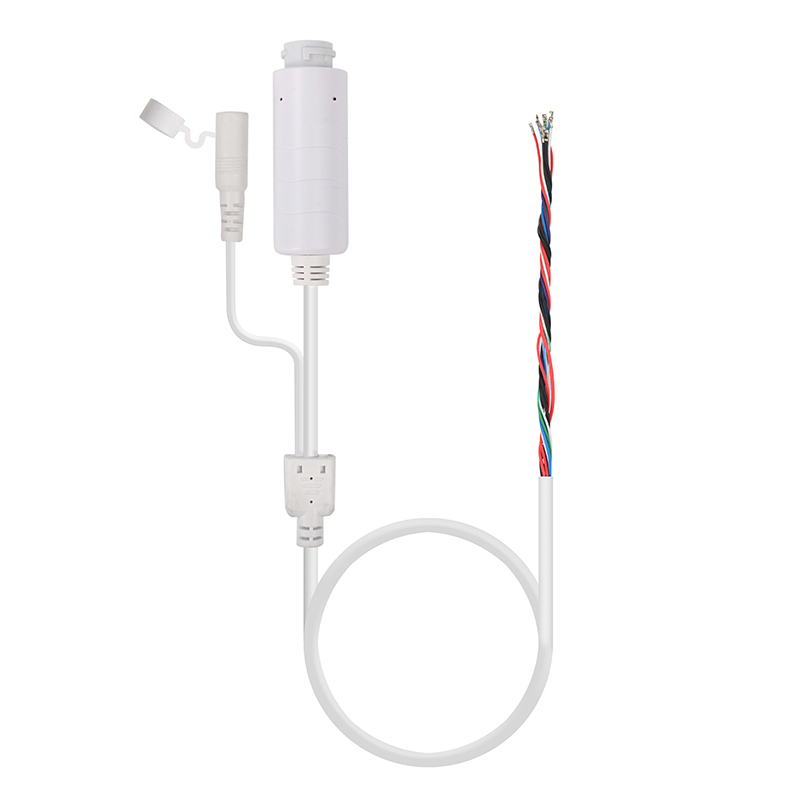

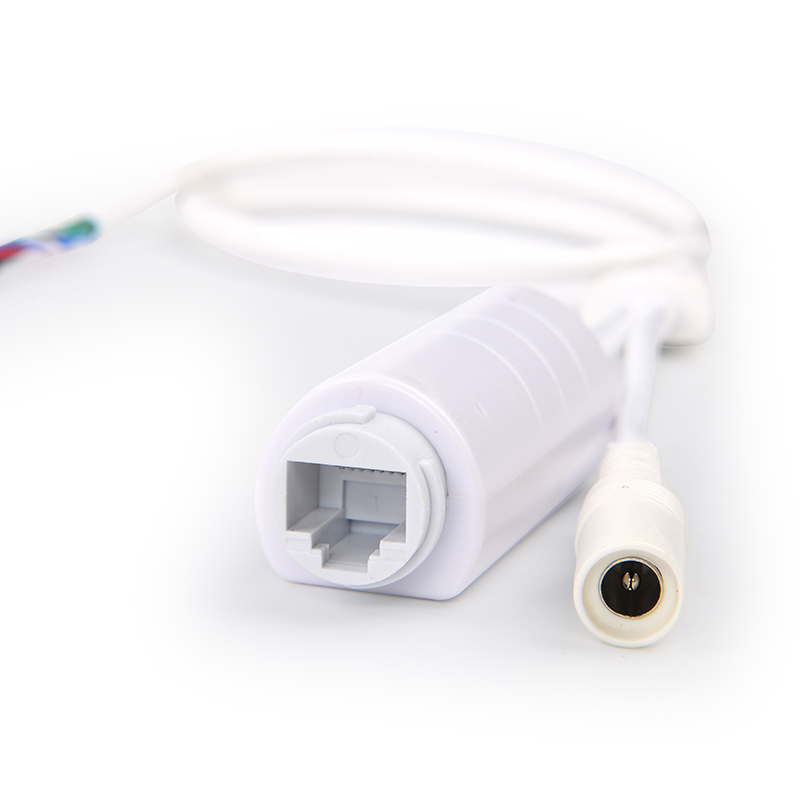

SDAPO FS5712DW waterproof ISO 1500V ieee802.3af standard iso 1.5kv Poe wire poe cable

POE Cable WATERPROOF
SDAPO POE Cable waterproof IEEE802.3AF 12V1A
Security:Has a perfect short circuit protection, 1500V high voltage isolation
Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power modes
Applications:All IP Camera

  FS5712DW

SDAPO FS5712DW waterproof ISO 1500V  ieee802.3af standard iso 1.5kv Poe wire

Product Description



POE Cable WATERPROOF

SDAPO POE Cable waterproof IEEE802.3AF 12V1A



Security:Has a perfect short circuit protection, 1500V high voltage isolation

Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power modes

Applications:All IP Camera



The main parameters:

No.

Parameter

Symbol

Min

Typical values

Max

Unit

1

Input Voltage

Vin

37

48

57

V

2

output voltage

+VDC

11.8

12.3

12.8

V

3

output Current

PWR


0.9

0.95

A

4

Isolation Voltage

Tj

-30

25

100

℃

5

Storage Temperature

Tstg

-10

25

60

℃

6

Operating Temperature

Vin

37

48

57

V



Temperature is typically 25 ℃, measured under the 48V power supply environment, only for reference design

 Do not exceed the recommended load value of 850mA (not included IR-cut switch) to adapt to different environments



Cable colour

definition


green white(1.25)

Tx+

IPC signal

green(1.25)

Tx-IPC signal
blue white(1.25)RX+IPC signal
blue(1.25)RX-IPC signal
purple(1.25)LED+

IPC indicator light

red(1.25)

12V+IPC power

black(1.25)

GNDIPC power
red(2.0)12V+Lamp board power
black(2.0)GNDLamp board power
