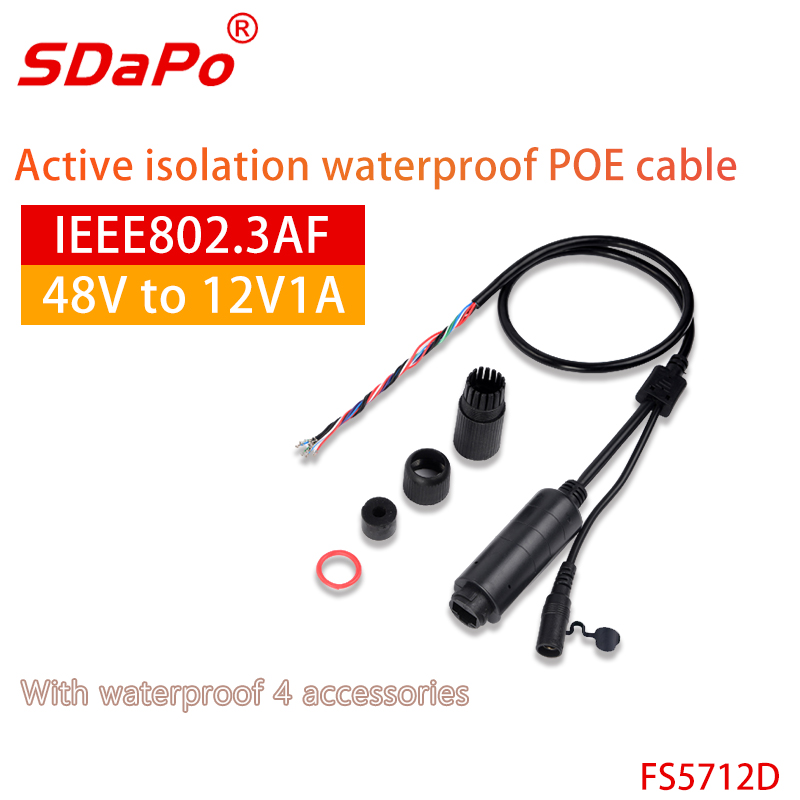

SDAPO Factory Direct FS5712D 12V 1A 13W ISO 1500V Transfer Rate 10/100M af standard poe cable

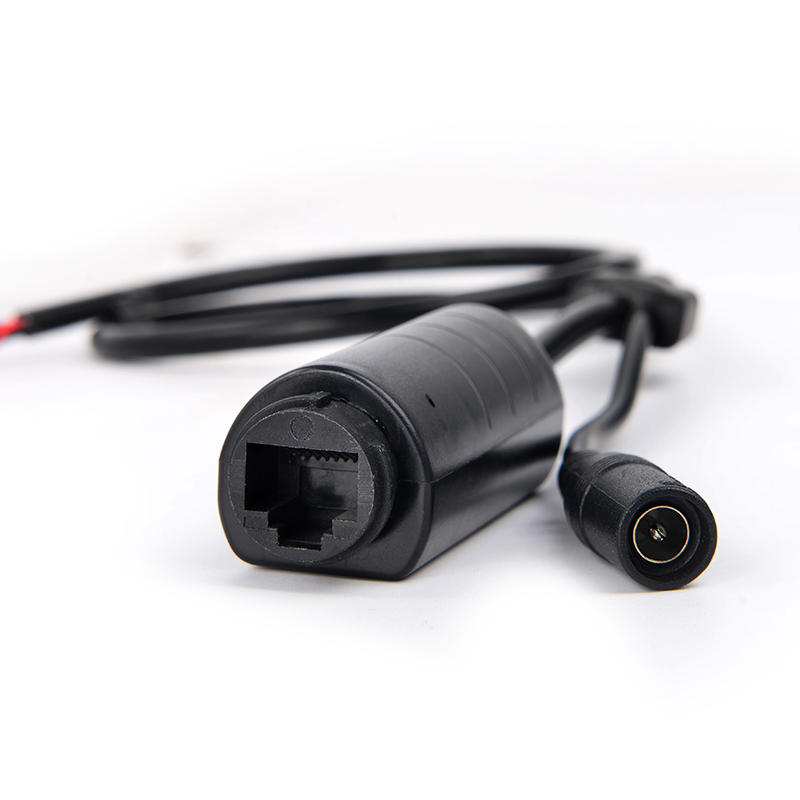

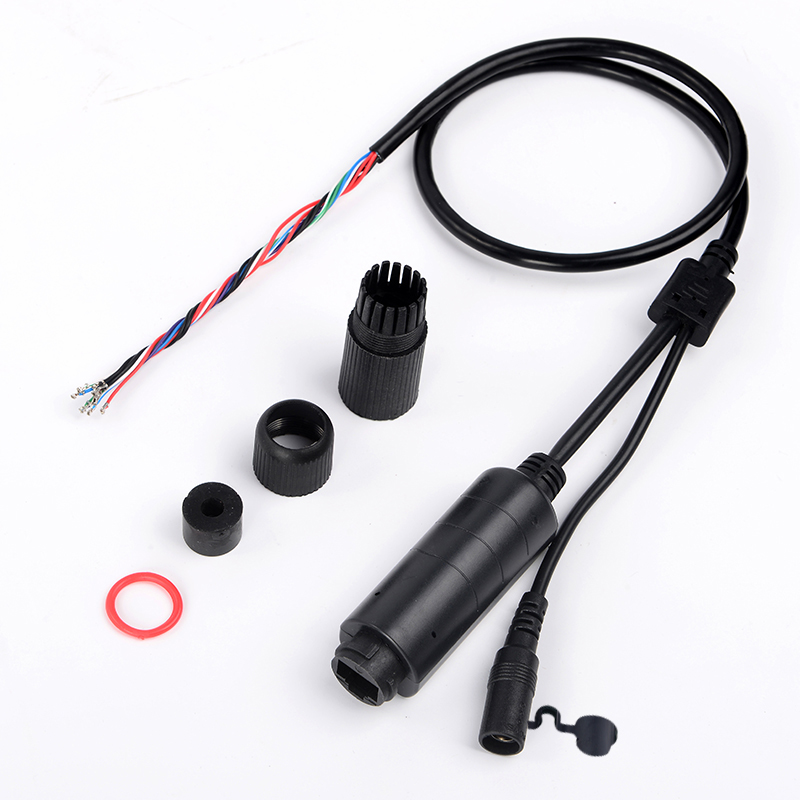

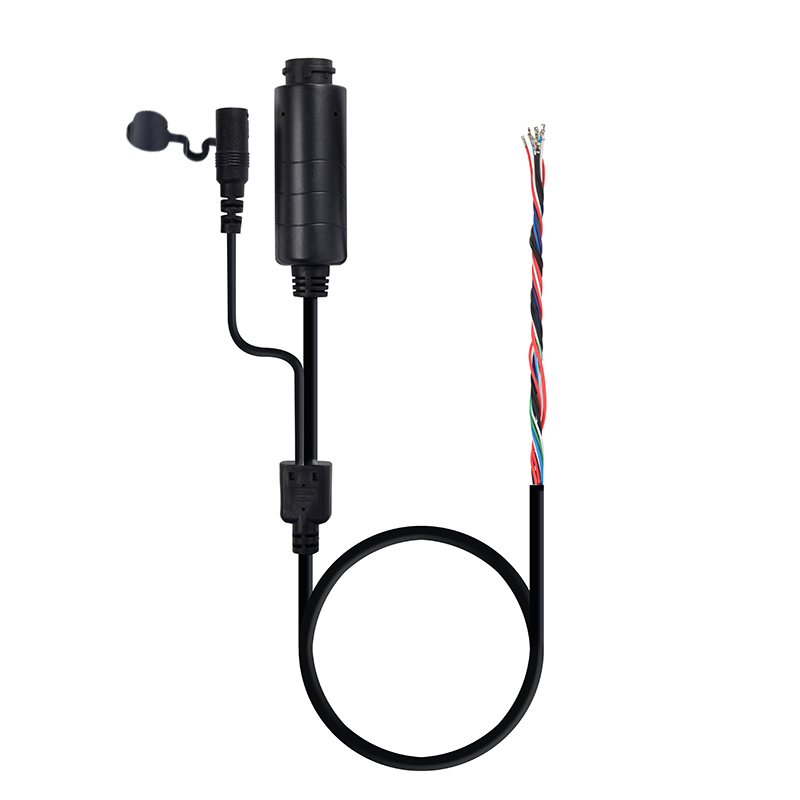

POE Cable WATERPROOF
SDAPO POE Cable waterproof IEEE802.3AF 12V1A
Security:Has a perfect short circuit protection, 1500V high voltage isolation
Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power modes
Applications:All IP Camera

SDAPO Factory Direct FS5712D 12V 1A 13W ISO 1500V Transfer Rate 10/100M af standard poe cable

Product Description



POE Cable WATERPROOF

SDAPO POE Cable waterproof IEEE802.3AF 12V1A



Security:Has a perfect short circuit protection, 1500V high voltage isolation

Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power modes

Applications:All IP Camera



The main parameters:



No.

Parameter

Symbol

Min

Typical values

Max

Unit

1

Input Voltage

Vin

37

48

57

V

2

output voltage

+VDC

11.8

12.3

12.8

V

3

output Current

PWR


0.9

0.95

A

4

Isolation Voltage

Tj

-30

25

100

5

Storage Temperature

Tstg

-10

25

60

6

Operating Temperature

Vin

37

48

57

V



Temperature is typically 25 ℃, measured under the 48V power supply environment, only for reference design

 Do not exceed the recommended load value of 850mA (not included IR-cut switch) to adapt to different environments



Cable colour

definition


green white(1.25)

Tx+

IPC signal

green(1.25)

Tx-IPC signal
blue white(1.25)RX+IPC signal
blue(1.25)RX-IPC signal
purple(1.25)LED+

IPC indicator light

red(1.25)

12V+IPC power

black(1.25)

GNDIPC power
red(2.0)12V+Lamp board power
black(2.0)GNDLamp board power



<td style="box-sizing: content-box; margin: 0px; padding: 0px; font-style: inherit; font-variant: inherit; font-stretch: inherit; line-height: inherit; font-f

PREVIOUS:SDaPo PSE801G Passive POE 48V 10/100/1000Mbps 30 Watts Maximum Gigabit PoE SplitterNEXT:SDAPO FS5712RW waterproof ISO 1500V IEEE802.3af Transfer Rate 10/100M poe cable

INQUIRY

Top

model

parameter

standard

FS5712D

Black waterproof PoE cable with DC

IEEE802.3af
