type-C poe splitter active 48 V DC to 5 V DCPoe Splitter SDAPO TYPEC0502

type-C poe splitter active 48 V DC to 5 V DCPoe Splitter SDAPO TYPEC0502

Overview

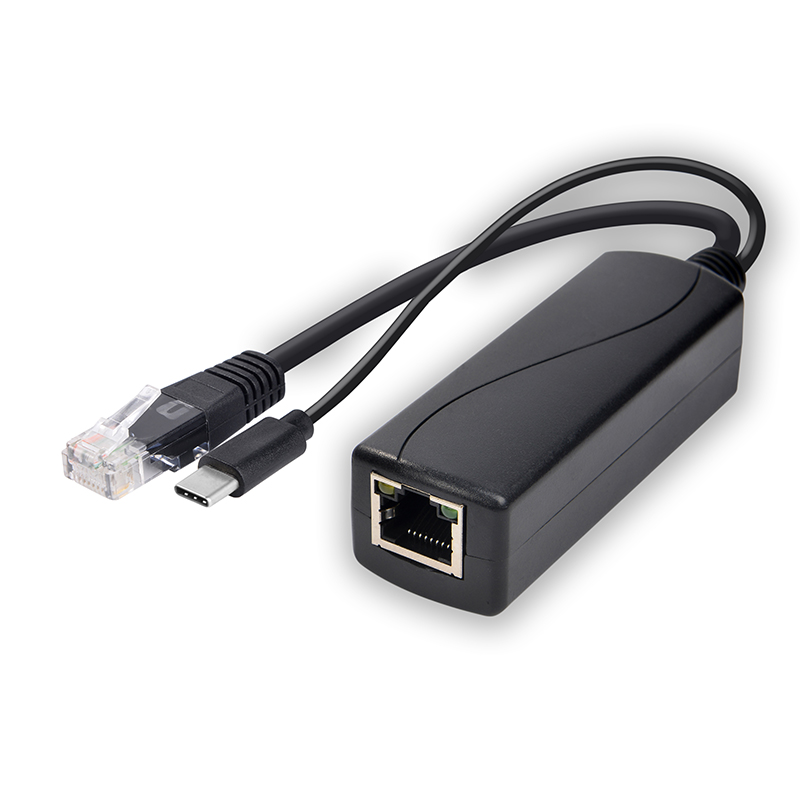

TYPEC0502 PoE splitter,a new model: With RJ45 port and DC port with TYPEC.
it is an economical and practical PoE remote power equipment base on IEEE802.3af standard. It can separate the power and data via cable transmission.Proper matching use with poe switch or PSE injector which meet standard IEEE802.3af,Provides power and data at the same time for the terminal device does not support PoE.
PoE splitter, output voltage of 5V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line.

Features
* Support international standard IEEE802.3 af(15W);
* POE port Support 10/100Mdata transmission
* PD support 37V-57V voltage transmission,Automatically detects power supply from PSE power supply module
* 5V/2.4A power outputusing TYPEC ,the TYPEC port only for power-charging.
* Support the isolation circuit protection,can effectively protect electrical equipment.
* Support the short circuit,overvoltage protection
* 1500V high voltage isolation

Technical Parameters

Model

TYPEC0502

Transfer Rate

10/100M

Power

Input 48V DC /0.35A, Output 5V/2.4A

Standard

IEEE802.3 af(12.5W)

TRNF

1/2(+),3/6(-);4/5(+),7/8(-)

Interface Type

1 Input RJ45 port, 1 output RJ45 port, 1 DC output(TYPEC)

Standard

IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af

LED

Yellow PoE lamp

Environment

Work within -20~50°,Storage within -30~60°
Work within 10%~90% Non-condensing,Storage within 5%~95% Non-condensing

Dimension

68L * 25W *25H

Weight

0.05kg


The main parameters:

No.

Parameter

Symbol

Min

Typical values

Max

Unit

1

Input Voltage

Vin


37


48


57

V

2

output voltage

+VDC

4.9

5

5.1

V

3

output Current

PWR


2

2.4

A

4

Isolation Voltage

ISO

1.48

1.5

1.52

KV

5

Storage Temperature

Tj

-40

25

105

6

Operating Temperature

Tstg

-20

25

70
