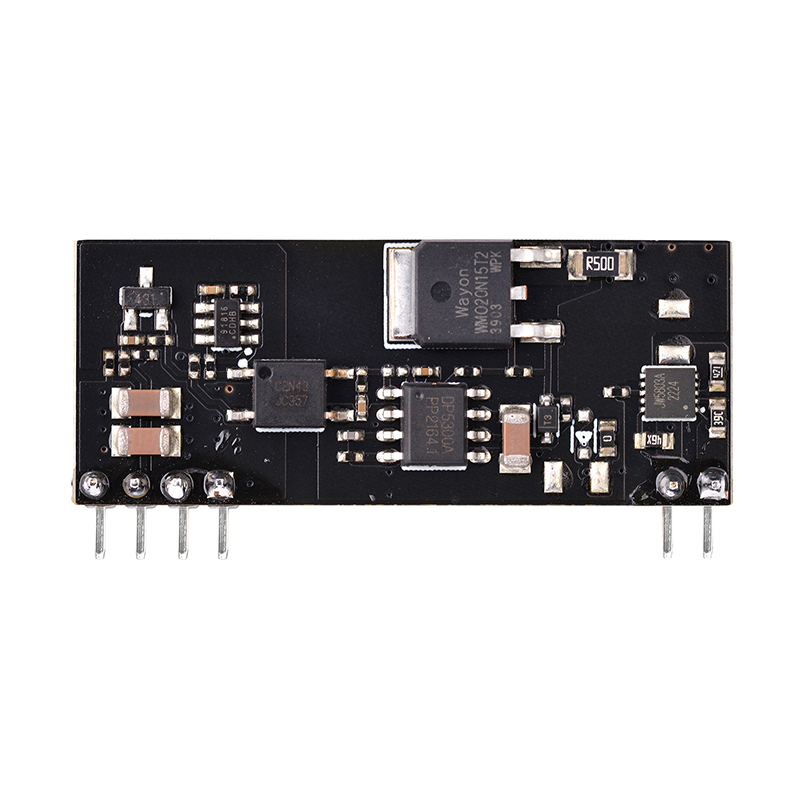

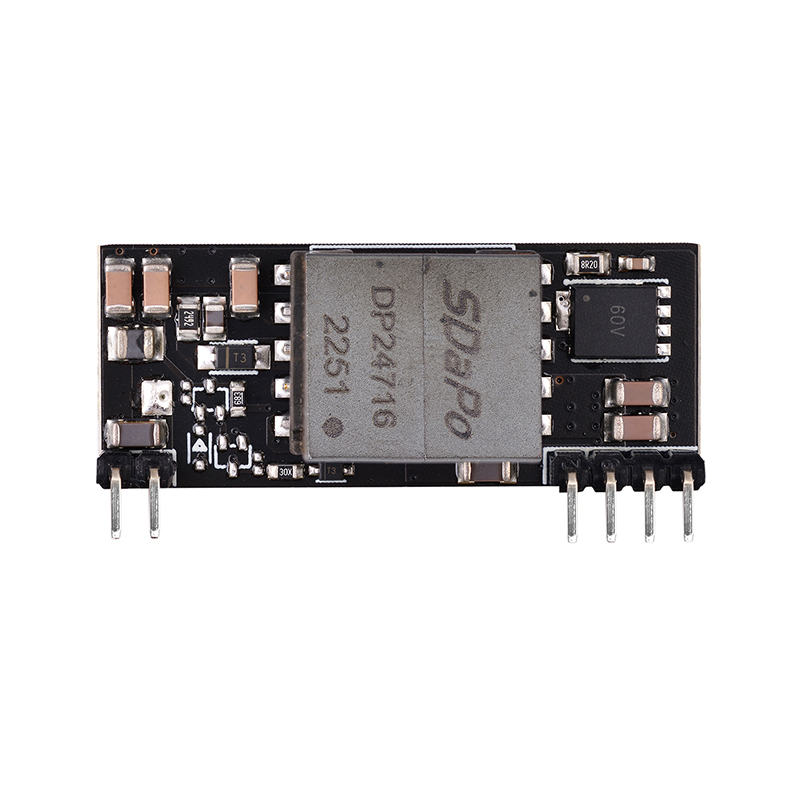

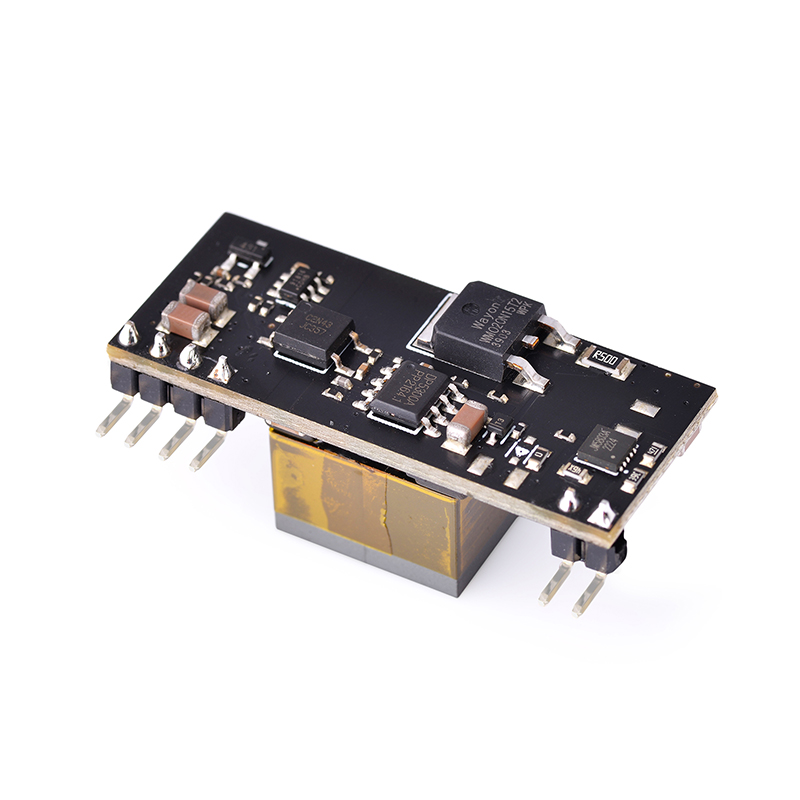

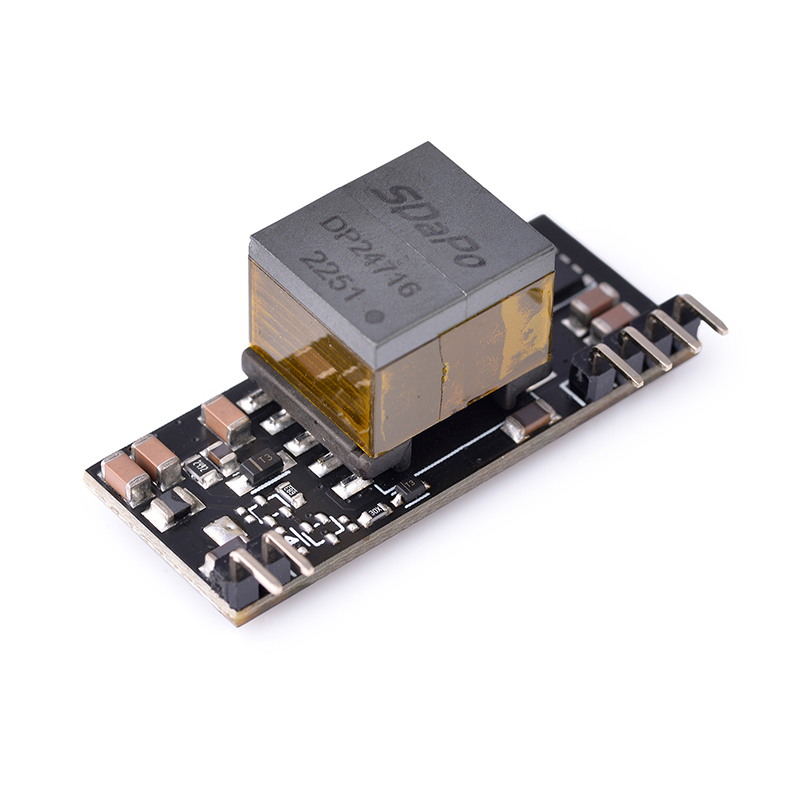

24V 1A POE Module IEEE802.3af/at Standard PoE Module SDAPO DP5324

Products Description

You are welcome to customize the POE modules of various sizes and appearances and function.The layout is required to receive the initial research and development expenses.After ordering a certain number of modules (usually 5000 pieces), the r&d cost can be deducted.After the sample is qualified, batch production.

DESCRIPTION

12V, 30W PD(Powered Device) Integrated  Module (Isolation Type)

FEATURES

Fully supports IEEE802.3af/at
Small Single In-Line (SIL) package size –57.3mm (L) x 14mm (H)
Input Voltage Range 44V to 57V
Support PoE applications in both of Fast / Gigabit Ethernet environments.
Short Circuit Protection
Over-temperature Protection
Programmable Classification (Default:Class 4)
High Efficiency
Isolation level 1.5KVrms.
Easy Installation and Low Cost (Isolation Type, Minimum External Devices required)
Low Output Ripple and Noise
Adjustable Output Voltage
1500Vrms Isolation (Input-Output)

Add 330uf / 16V capacitance at the output,This will reduce the ripple and noise to typically 200mVp-p. 12V@2A.

optional external lc filter for lower ripple and noise,This will reduce the ripple and noise to typically 50mVp-p. 12V@2A.

Add 330uf / 16V capacitance at the output,This will reduce the ripple and noise to typically 200mVp-p. 12V@2A
