SDAPO PSE156G at-4 pair Gigabit 52V POE Injector 60W

Key Features
- Up to 60W of Power on 4-pairs
- IEEE 802.3bt Compliant
- Safe on Low Power Devices Receive Only the Power They Need
- Safe and Reliable Power to WLAN Access Points
- Automatic Detection and Protection of Non–standard Ethernet Terminals
- Supports 10/100/1000Base-T LAN environment
- Unique interlocking feature for easy installation

Gigabit at 4-Pair PoE Injector      PSE156G IEEE802.3bt

Advanced PoE Solution

The PSE156G is a Gigabit Power over Ethernet Injector with one Ethernet Input (data only) port and one Output (data + power) port that is designed for small or medium network environments. The PSE156G supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones. It complies with IEEE 802.3bt PoE standard. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points. By adding a PoE Splitter to existing non-PoE networking equipment, installing networking products such as Access Points and IP cameras can easily be performed. Wireless device deployments are easily located without the need for power outlets and network administrators don’t need to use AC power adapters anymore. For all the function featured in PSE156G, people can get the benefit of flexible network installation at lower cost, less downtime.

SDAPO PSE156G  at-4 pair  Gigabit 52V  POE  Injector 60W

Key Features

- Up to 60W of Power on 4-pairs

- IEEE 802.3bt Compliant

- Safe on Low Power Devices Receive Only the Power They Need

- Safe and Reliable Power to WLAN Access Points

- Automatic Detection and Protection of Non–standard Ethernet Terminals

- Supports 10/100/1000Base-T LAN environment

- Unique interlocking feature for easy installation

Technical Specifications Standards Compliance

Dimensions (L x W x H) / Weight

39*62.7*145mm

IEEE 802.3 10Base-T Ethernet

490g

IEEE 802.3u 100Base-Tx Fast Ethernet

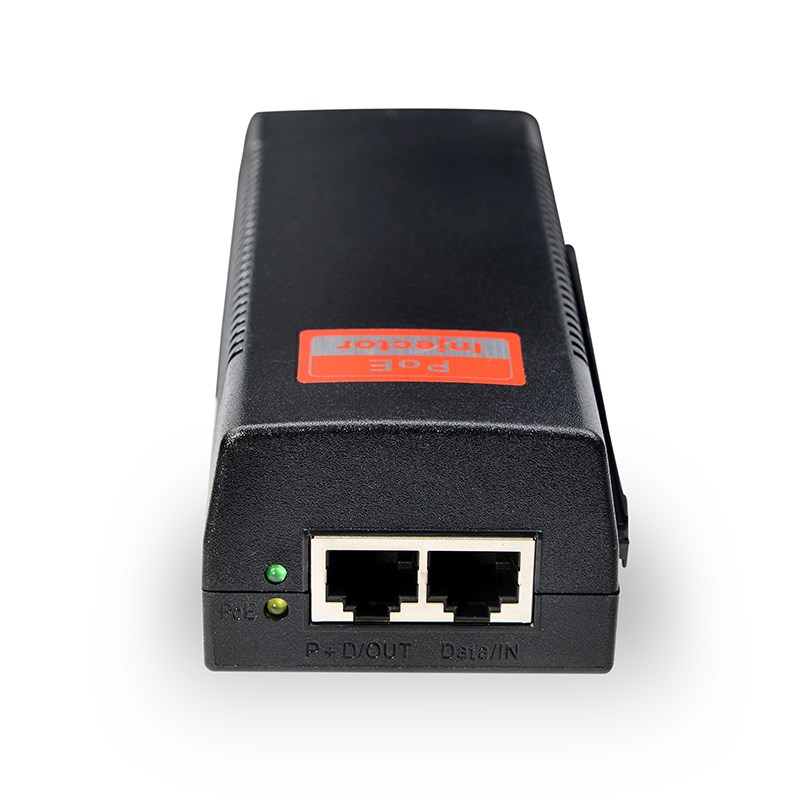

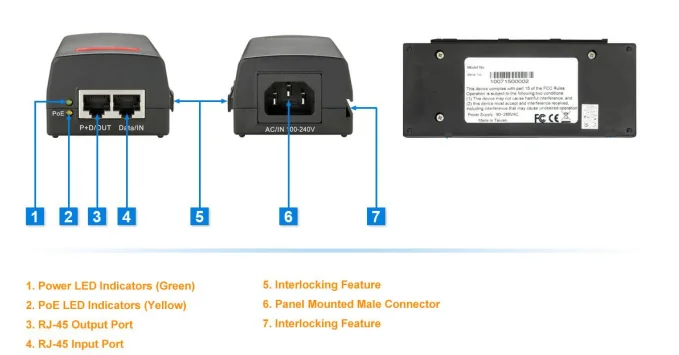

Indicators

IEEE 802.3bt Power over Ethernet

AC Power (Green)

Connector: RJ-45 10/100/1000 Mbps

PoE (Orange)

PoE Power Output

Environmental Conditions

Pin Assignment and Polarity:

Operating Temperature: -20 ~ 60°C

Data+Power Pairs 1/2 (+), 3/6 (-);

Storage Temperature: -10 ~ 70°C

Power Pairs 4/5 (+), 7/8 (-)

Storage Humidity:

Output Power Voltage: 54-56 VDC

Maximum 95%, Non-condensing

Power: Mode-A+Mode-B   60 Watts Max.

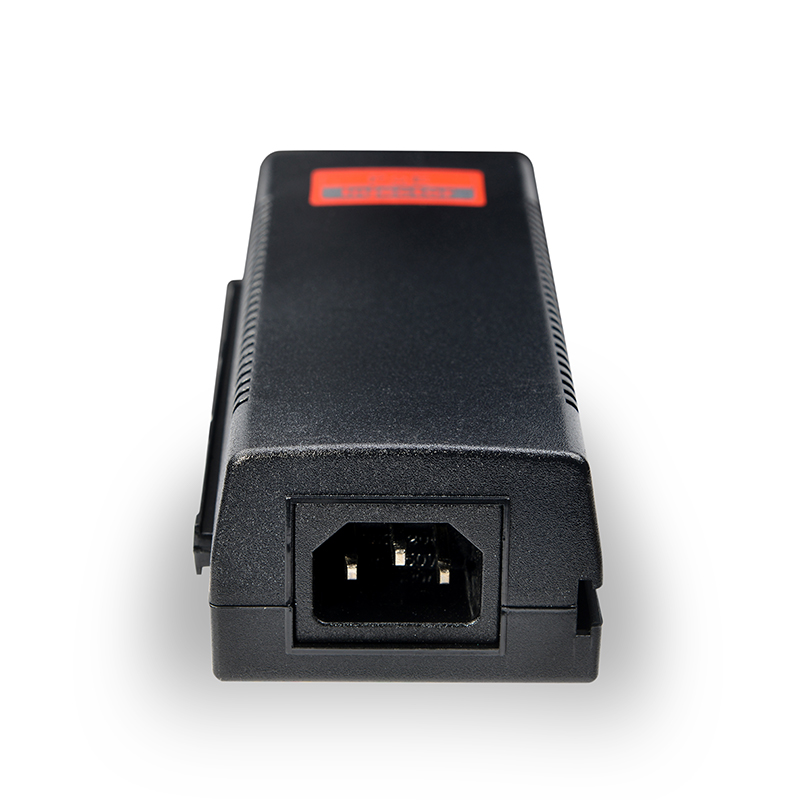

Input Power AC Input Voltage: 100~240VAC


Requirements AC Input Current: ≤1.5A @ 100~240 VAC
