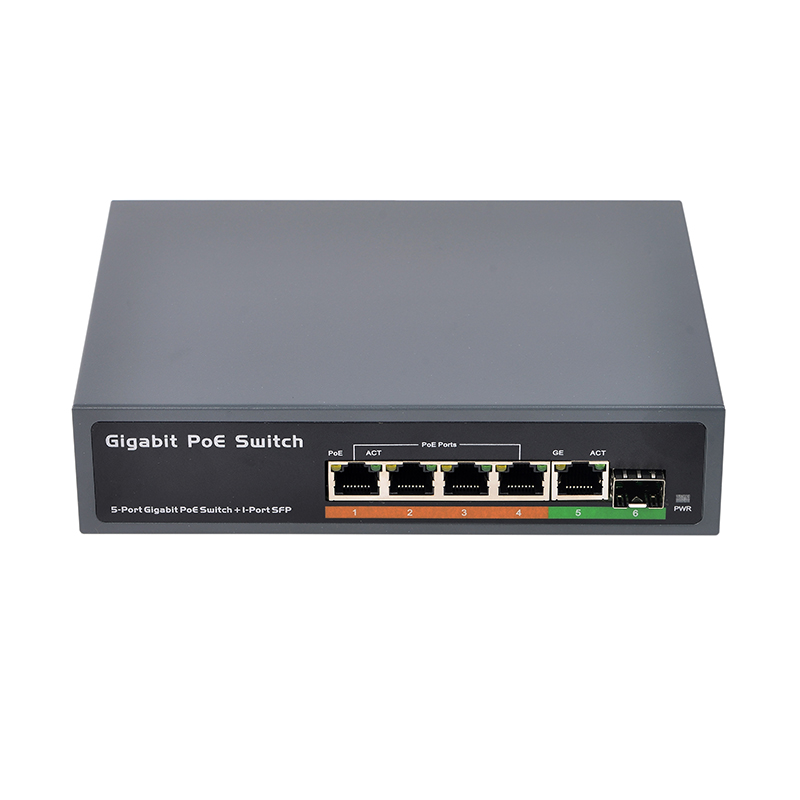

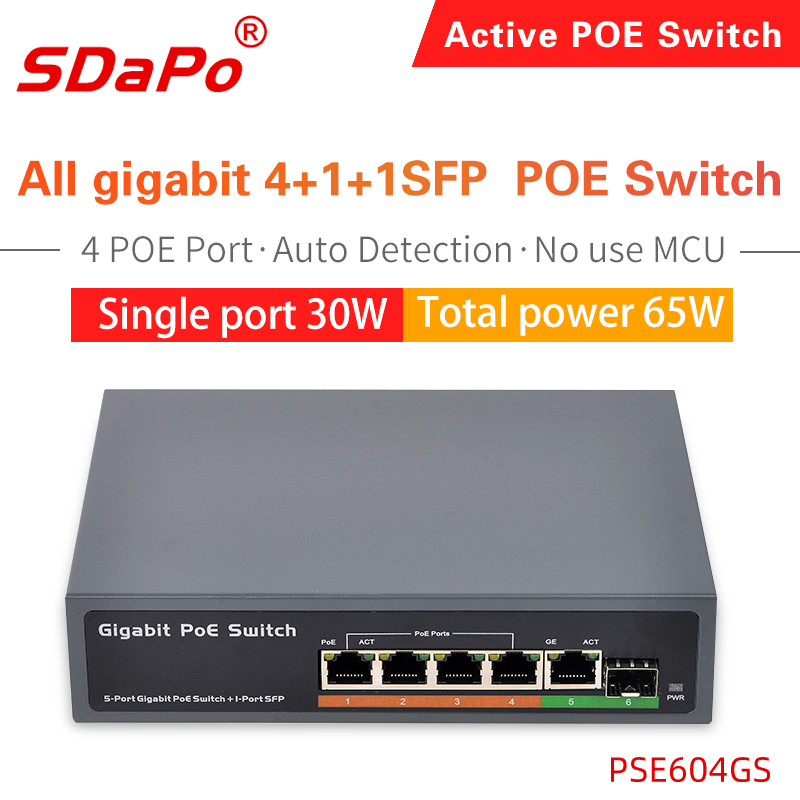

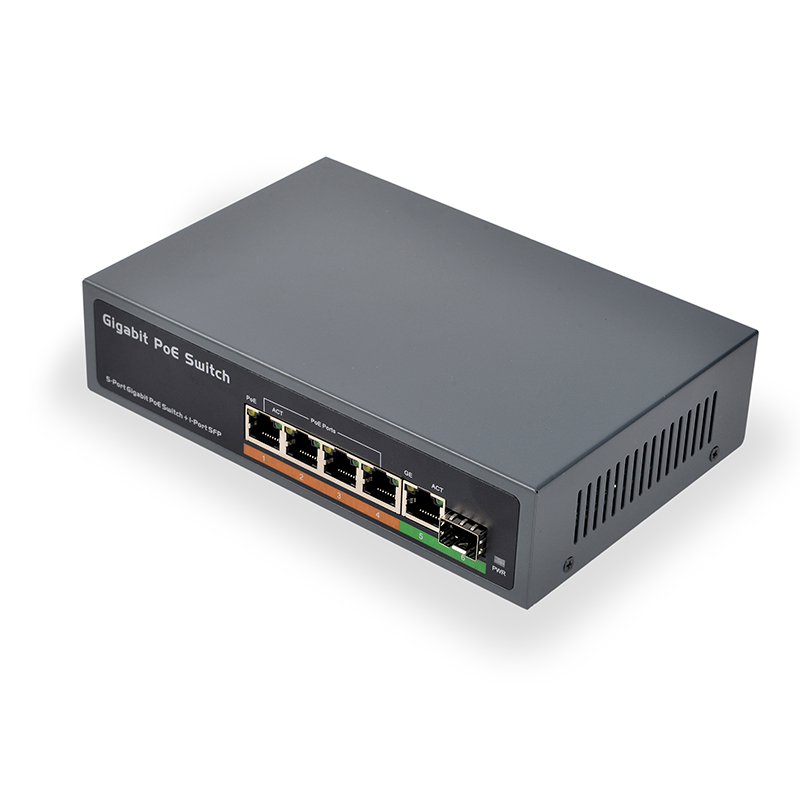

SDapo Brand All Gigabit 65W PSE604GS 4 Port PoE 4 port PoE+1 uplink+1SFP PoE Network Switch

The PSE604GS offers 5 10/100/1000Mbps RJ45 ports and 1 Gigabit SFP ports. The Gigabit SFP ports can be for 1000Base-SX/LX through SFP (Small Factor Pluggable) interface. PSE604GS boasts a high performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 12Gbps. Its built-in GbE uplink ports also offer incredible extensibility, flexibility and connectivity to the Core switch or Servers.



Hardware Specification



Copper Ports



5 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports with IEEE 802.3af/at PoE



SFP/mini-GBIC Slots



1   1000Base-SX/LX/BX SFP interfaces



Switch Architecture



Store-and-Forward



Switch Fabric



12Gbps / non-blocking



Switch Throughput



8.928Mpps@64 bytes





Address Table



8K entries



Share Data Buffer



4Mbytes





Flow Control



Back pressure for Half-Duplex

IEEE 802.3x Pause Frame for Full-Duplex









LED

System:

Power ,PoE In-Use ( yellow)

10/100 LINK / ACT(Green),

1000 LINK ( yellow)



Dimension (W x D x H)



185*124*44mm , 1U height



Weight



1 kg



Power Requirement



100~240V AC, 50-60 Hz



Power Consumption / Dissipation





65 Watts maximum




Power over Ethernet



PoE Standard



IEEE 802.3af/at Power over Ethernet / PSE



PoE Power Supply Type



End-Span



PoE Power Output

Per Port 52V DC,

af:350mA. Max. 18.2 Watts

at:600mA.   Max.31.2 Watts



Power Pin Assignment



1/2(+), 3/6(-)



PoE Power Budget



65Watts



  PoE Ability

 Number of PD @15.4W watts:4





Standards Conformance









Standards Compliance



IEEE 802.3 10Base-T

IEEE 802.3u 100Base-TX/100Base-FX

IEEE 802.3z Gigabit SX/LX

IEEE 802.3ab Gigabit 1000Base-T

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet
