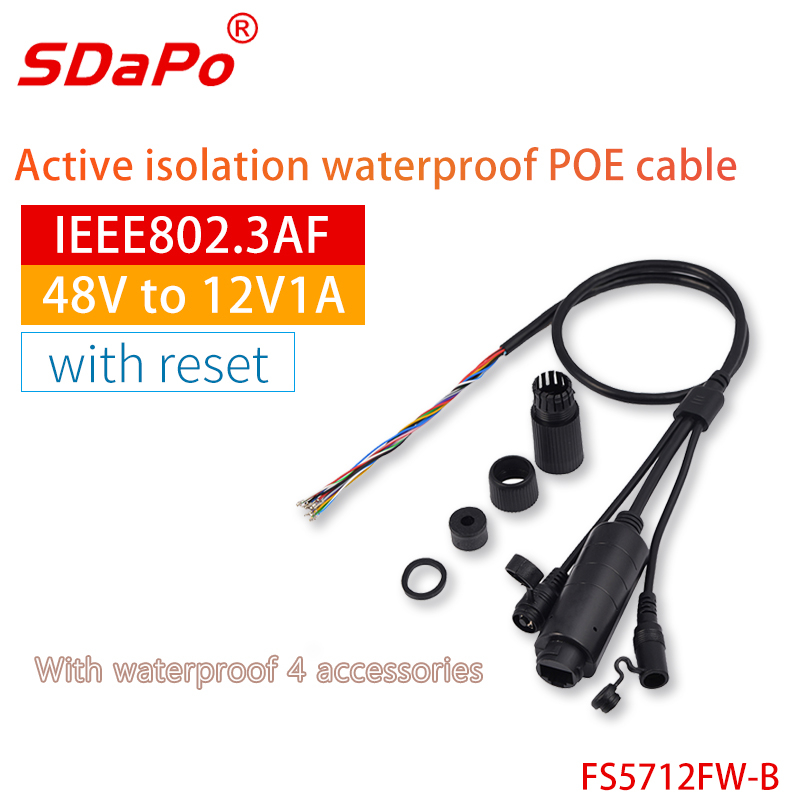

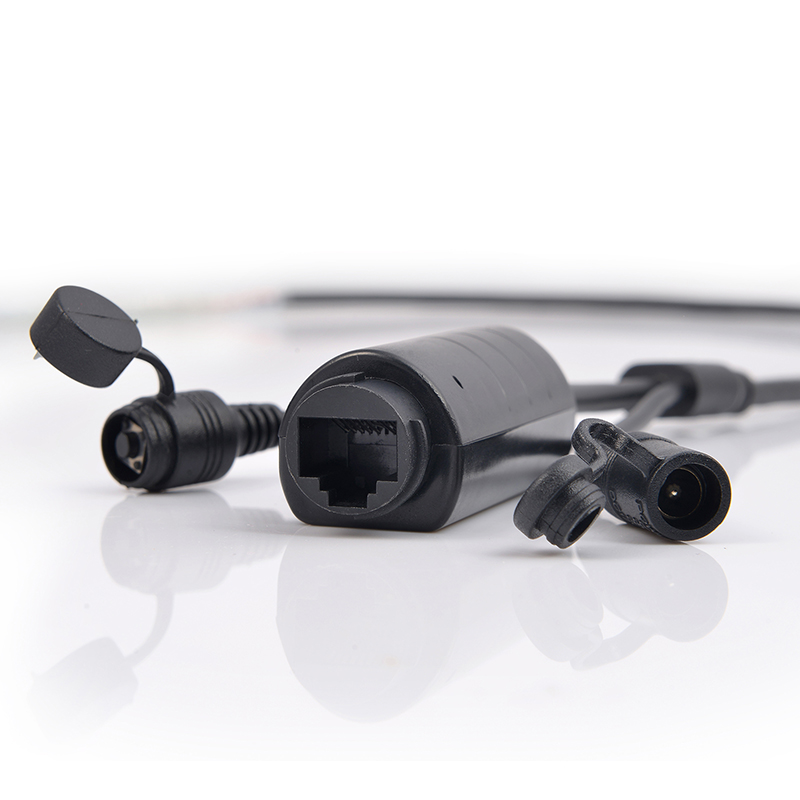

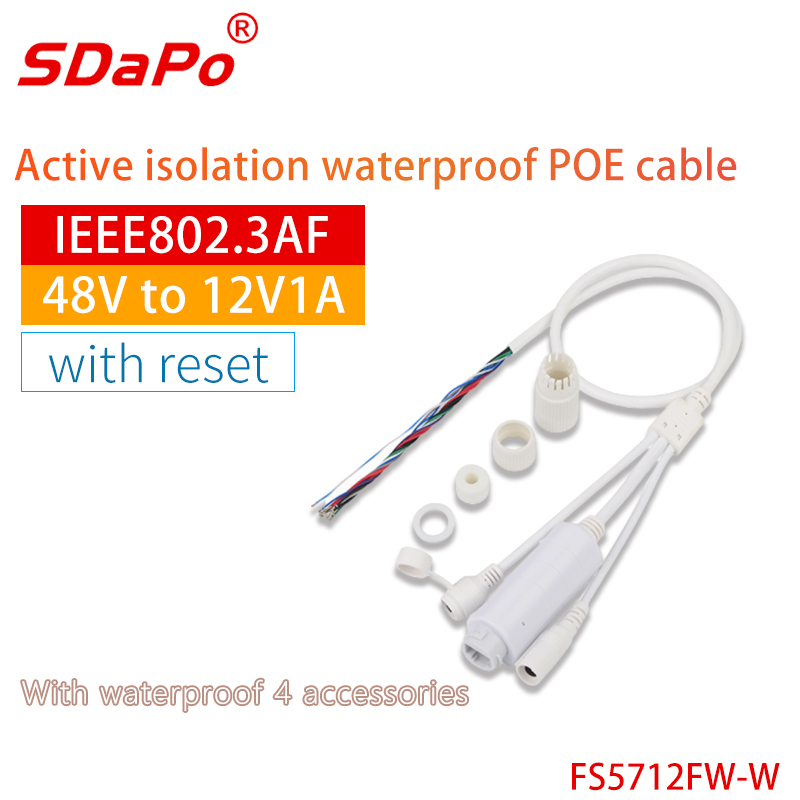

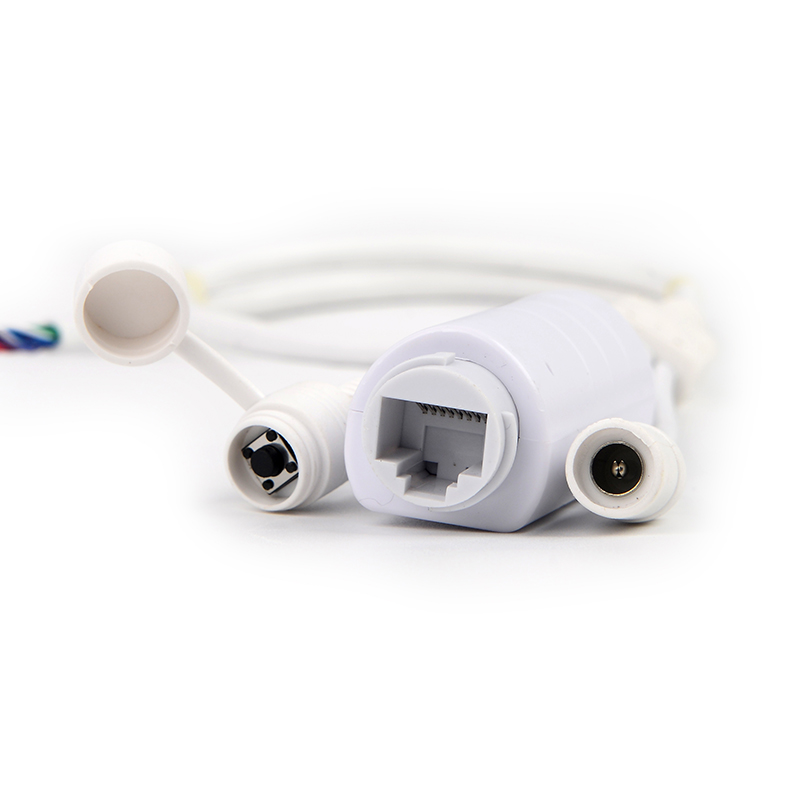

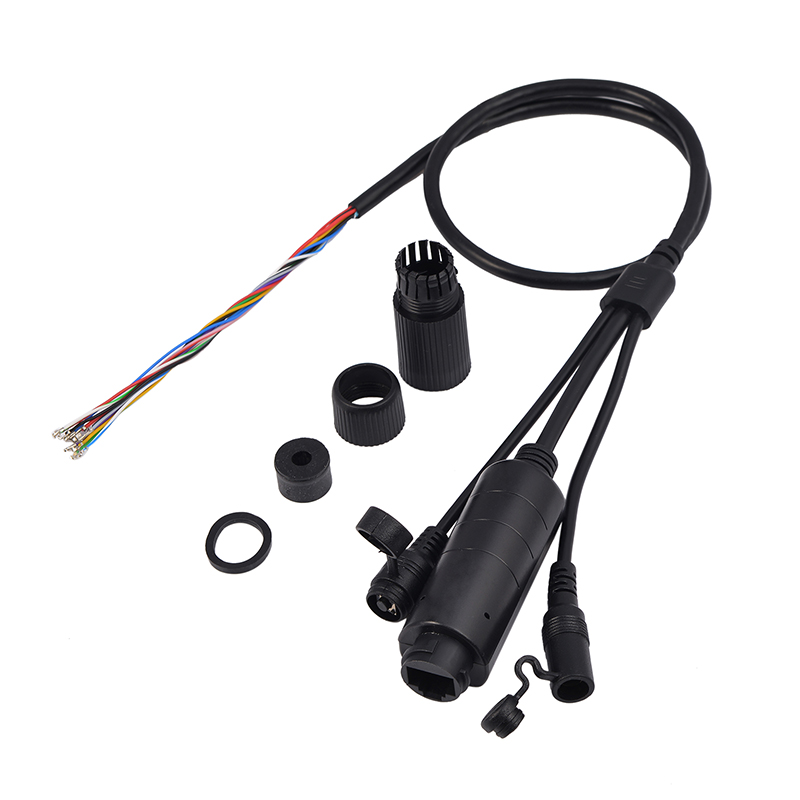

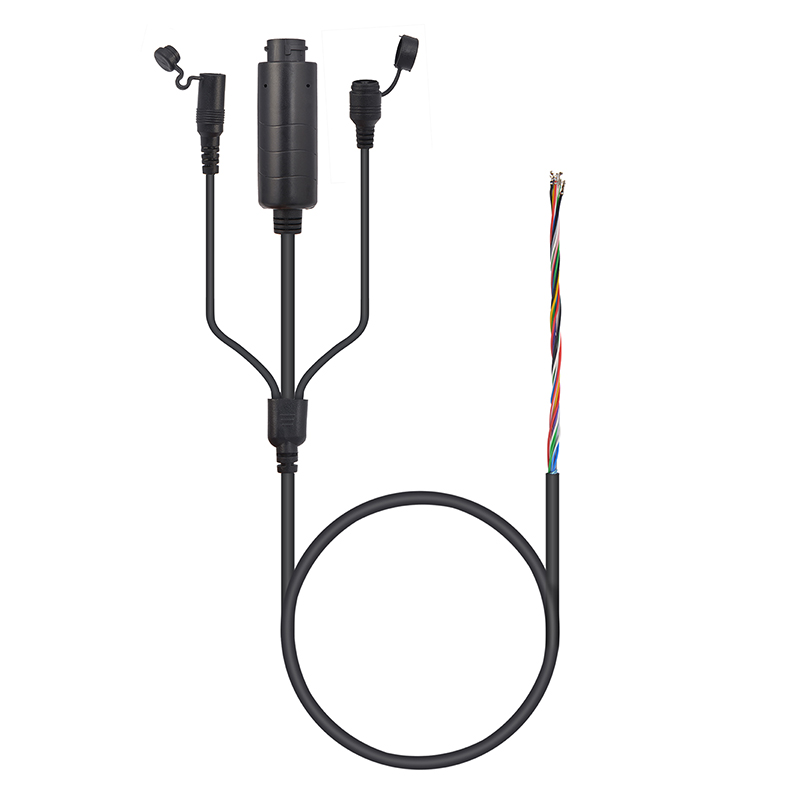

Waterproof POE Cable IP66 1500V High voltage isolation with reset RJ45 cable 12V 1A For IP Camera SDAPO FS5712FW

Waterproof POE Cable IP66 1500V High voltage isolation with reset RJ45 cable 12V 1A For IP Camera SDAPO FS5712FW

Our POE cable is ultrasonic process +1500V high voltage isolation.Not injection molding + non -isolated.Injection molding and non-isolation can cause disconnection drop line during use.Because injection molding the process is plastic injection molding.The PCB board is all covered with adhesive.The impact process will result in 16 legs of the network filter.Virtual welding.False welding.Once the use of heat.Your feet will go up.Caused the image to drop.If not isolated.It's also dropped.This non - isolation dropped line is generally clear to everyone.And ours is the ultrasonic process + isolation module.Ultrasonic press the gap of upper and lower cover.And then the modules inside because there's no impact.We can make it isolation .because the isolating transformer has a magnetic core.Injection molding will crush) the isolation is very stable.We test for water resistance.It was soaked in water for several hours.It's very waterproof well


POE Cable WATERPROOF

SDAPO POE Cable waterproof IEEE802.3AF 12V1A

Now all poe cables change to DC with waterproof caps

Security:Has a perfect short circuit protection, 1500V high voltage isolation

Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power modes

Applications:All IP Camera

The main parameters:

No.

Parameter

Symbol

Min

Typical values

Max

Unit

1

Input Voltage

Vin

37

48

57

V

2

output voltage

+VDC

11.8

12.3

12.5

V

3

output Current

PWR


0.85

1

A

4

Isolation Voltage

ISO


1500


V

5

Storage Temperature

Tj

-30

25

90

6

Operating Temperature

Tstg

-30

25

65

Temperature is typically 25 ℃, measured under the 48V power supply environment, only for reference design Do not exceed the recommended load value of 850mA (not included IR-cut switch) to adapt to different environments

Cable colour

definition


green white(1.25)

Tx+


IPC signal

green(1.25)

Tx-

blue white(1.25)

RX+

blue(1.25)

RX-

purple(1.25)

LED+

IPC indicator light

red(1.25)

12V+

IPC power

black(1.25)

GND

red(2.0)

12V+

Lamp board power

black(2.0)

GND

Reset poe cable reset function is gray colour.audio poe cable audio function is yellow and gray .yellow is “+” and gray is GND ”-”

Overview

PoE cable ,it is an economical and practical PoE remote power equipment base on IEEE802.3af standard. It can separate the power and data via cable transmission.Proper matching use with poe switch or PSE injector which meet standard IEEE802.3af,Provides power and data at the same time for the terminal device does not support PoE.
PoE cable, output voltage of 12V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line. Features · Support international standard IEEE802.3 af(15.4W); · Support 10/100Mdata transmission · PD support 37V-57V voltage transmission,Automatically detects power supply from PSE power supply module · 12V power output,easy to access Poe network for non-poe terminal · Support the isolation circuit protection,can effectively protect electrical equipment. · Support the short circuit,overvoltage protection

Model

FS5712

Transfer Rate

10/100M

Power

Input 48V DC /0.35A, Output 12V/1A

Standard

IEEE802.3 af(15.4W)

TRNF

1/2(+),3/6(-);4/5(+),7/8(-)

Interface Type

1 Input RJ45 port, output terminal

Security

1500V high voltage isolation

Standard

IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af

LED

Yellow PoE lamp

Environment

Work within -20~50°,Storage within -30~60°
Work within 10%~90% Non-condensing,Storage within 5%~95% Non-condensing

Dimension

70CM

Weight

0.3kg
